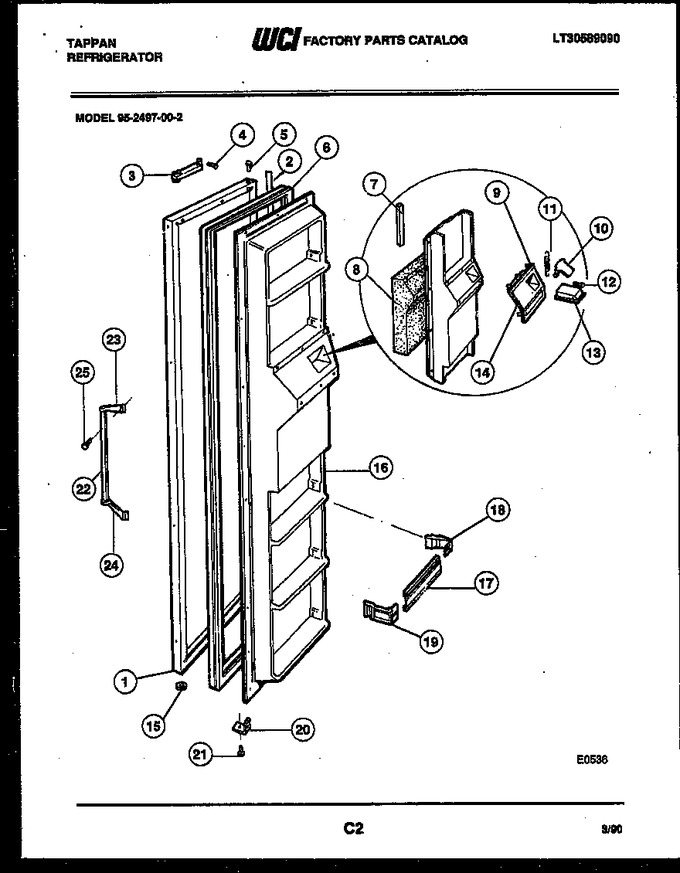

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G188343-09 | Freezer Door-wheat |
|
- | |||||
| 2 | 3001012 | Trim-freezer Door |
|
- | |||||
| 3 | 5303200272 | Door Closer |
|
- | |||||
| 4 | G169729 | Screw-closer Mtg |
|
- | |||||
| 5 | G183139 | Bearing-upper Hinge |
|
- | |||||
| 6 | 3001049 | Gasket-freezer Door |
|
- | |||||
| 7 | G177720 | Shield-wiring |
|
- | |||||
| 8 | G187880 | Insulation-housing |
|
- | |||||
| 9 | G179017 | Pin-ice Door Hinge |
|
- | |||||
| 10 | 3001042 | Flipper, Ice Door |
|
- | |||||
| 11 | G184726 | Spring-flipper Retainer |
|
- | |||||
| 12 | G187363 | Screw |
|
- | |||||
| 13 | 5308017528 | Ice Door |
|
- | |||||
| 14 | 3001055 | Cover, Door Pnl Trim |
|
- | |||||
| 15 | G175070 | Bushing-lower Hinge |
|
- | |||||
| 16 | G179972-01 | Panel-inner Door |
|
- | |||||
| 17 | 5303206707 | Door Rack (5) |
|
- | |||||
| 18 | 5303206366 | Support-rh (5) |
|
- | |||||
| 19 | 5303206720 | Support-lh (5) |
|
- | |||||
| 20 | G165376 | Bumper - Light Switch |
|
- | |||||
| 21 | G162585 | Screw |
|
- | |||||
| 22 | 3001013 | Handle-freezer Door |
|
- | |||||
| 23 | G175809 | Handle-end Top |
|
- | |||||
| 24 | G175810 | Handle-end Bottom |
|
- | |||||
| 25 | G185566 | Screw |
|
- | |||||
| *36841 | 5303007739 | Insulation, Bulk |
|
- | |||||
| 14A | G183058 | Label-dr Pnl Trim Cover (non-illustrated) |
|
- | |||||
| 14B | G188218 | Nut-self Threading (6) (non-illustrated) |
|
- | |||||
| 16A | G162585 | Screw |
|
- | |||||
| 1A | G152308-01 | Door Plug-bottom (non-illustrated) |
|
- |
