Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 215734303 Gasket-frzr Door, Magnetic, Almond Appelez-nous -
5 215267701 Support-door Rack,``2-liter`` ,rh/lh In-Stock Immediately $ 7.79

8 215700400 Rack-door, W/ End Caps, (5) Appelez-nous -
9 215008201 Panel, Inner Door, Frzr Appelez-nous -
11 215477011 Panel-frzr Door, Almond, W/ Foam Insul Appelez-nous -
13 5303289522 Door Stop Special Order $ 40.17

17 215422000 Handle End, Chrome Appelez-nous -
18 215339711 Handle-door, Almond Appelez-nous -
22 5303289320 Bearing-hinge Special Order $ 19.69

37 215219801 Trim-handle, 13.82``, Black/silver Appelez-nous -
58 5308002748 Screw Appelez-nous -
*80710 5303917276 Insulation-door, Fiberglass, (bulk) Special Order $ 330.91

*80710 215361200 Foam Strip, Handle Mtg Hole Appelez-nous -
21A 215218600 Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 Appelez-nous -
21D 215410900 Screw-handle Mtg, Hex Head, 10-32 X 3/8 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

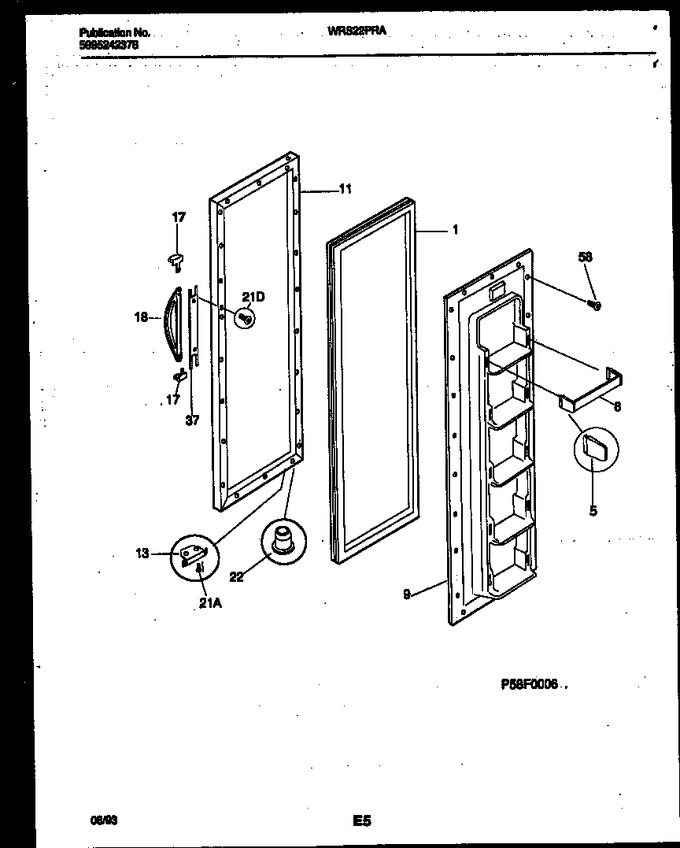

Diagram for WRS22PRAD0
