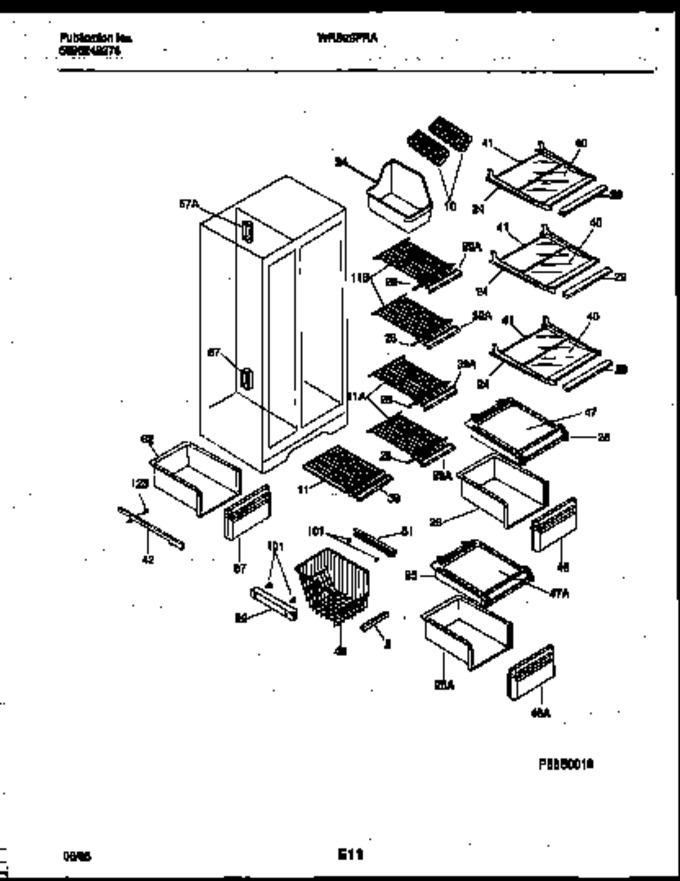

05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303289382		Trim-basket		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303289518		Shelf-freezer,sliding Wire		Appelez-nous	-
24	215069004		Frame-refr Shelf, Cantilever, (3)		Appelez-nous	-
25	5303289587		Cover-storage Pan, Upper & Lower, (2)		Appelez-nous	-
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		Cap-protector		Appelez-nous	-
29	5303297081		Trim-refr Shelf, (3)		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
39	5303297079		Trim-frzr Shelf		Appelez-nous	-
40	5303300043		Glass-shelf, (3)		Appelez-nous	-
41	5303289388		Trim-refr Shelf, Snap-on, Rear, (3)		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
46	215042023		Front-storage Pan, Upper		Appelez-nous	-
47	5303297076		Insert-pan Cover, Glass, Clear/white Dot		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
62	5303289517		Tray - Deli				$ 133.19
67	5303300851		Front-deli Tray		Appelez-nous	-
101	5308007097		Screw, Cr Truss Head, 8-15(a) X 3/4		Appelez-nous	-
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*80731	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303289504		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	215111701		Shelf, Freezer, Fixed Wire, (2)		Appelez-nous	-
25A	5303289586		Trim-storage Pan Cvr (non-illustrated)		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
29A	5303209742		Retainer-glass (non-illustrated)		Appelez-nous	-
39A	5303297080		Trim-frzr Shelf, (4)		Appelez-nous	-
41A	5303211351		Lock-shelf Trim, Rear (non-illustrated)		Appelez-nous	-
42A	215002401		Hanger-pan/tray,rh (non-illustrated)				$ 85.84
46A	215042022		Front-storage Pan, Lower		Appelez-nous	-
47A	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-
