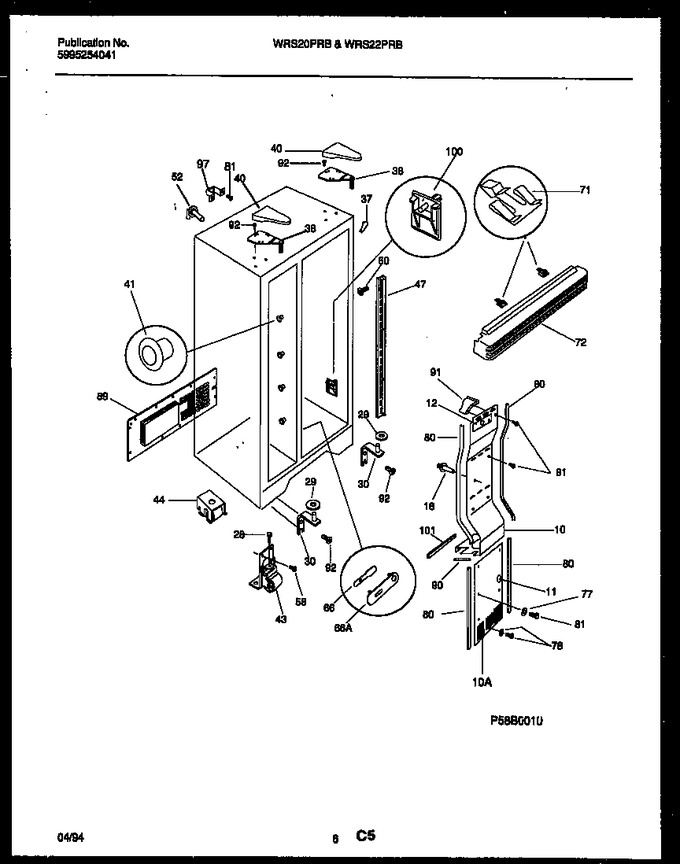

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts


09 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5303289495		Cover, Air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303291143		Plug-decorative, I.m. Inlet Tube, & Elec Conn		Appelez-nous	-
18	5303289043		Support-air Duct Cvr, 2.55`` Long		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215003200		Washer, .40x.63x .16,nylon				$ 54.86
30	5303289060		Bracket-lower Hinge, W/hinge Pin		Appelez-nous	-
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	215595601		Bracket-upper Hinge, W/ Closer		Appelez-nous	-
40	5303288946		Cover-upper Hinge, Almond				$ 31.30
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
43	5303289059		Roller Assy,front,(2)		Appelez-nous	-
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
47	5303288974		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
52	5303289294		Tube-water Inlet		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
66	215050201		Damper-meat Keeper		Appelez-nous	-
71	215003300		Clip-grille,(2)				$ 20.00
72	5303289508		Grille/kickplate, Almond		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
80	218154003		Gasket-coil Cover, Air Duct Cvr, (4)		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
10A	5303289494		Cover-evap Coil, Lower		Appelez-nous	-
18A	5303289044		Support-air Duct Cvr,1.83``long(non-illustrated)		Appelez-nous	-
30A	5303289290		Tapping Plate, Lh		Appelez-nous	-
30B	5303289291		Tapping Plate,rh(non-illustrated)		Appelez-nous	-
41A	5304500407		Grommet, Shelf Mtg, Lh (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43A	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23)x7/8 (non-illustrated)				$ 6.34
52A	215058000		Plug-wtr Inlet Tube (non-illustrated)				$ 2.73
66A	218171301		Cover-meat Kpr Dmpr				$ 45.09
71A	215608400		Screw-clip/grille, Pan Head, 6-ab X 1/4 C R (non-illustrated)		Appelez-nous	-
78A	5308009617		Washer, Ext Tooth Lock, No. 10 (non-illustrated)		Appelez-nous	-
