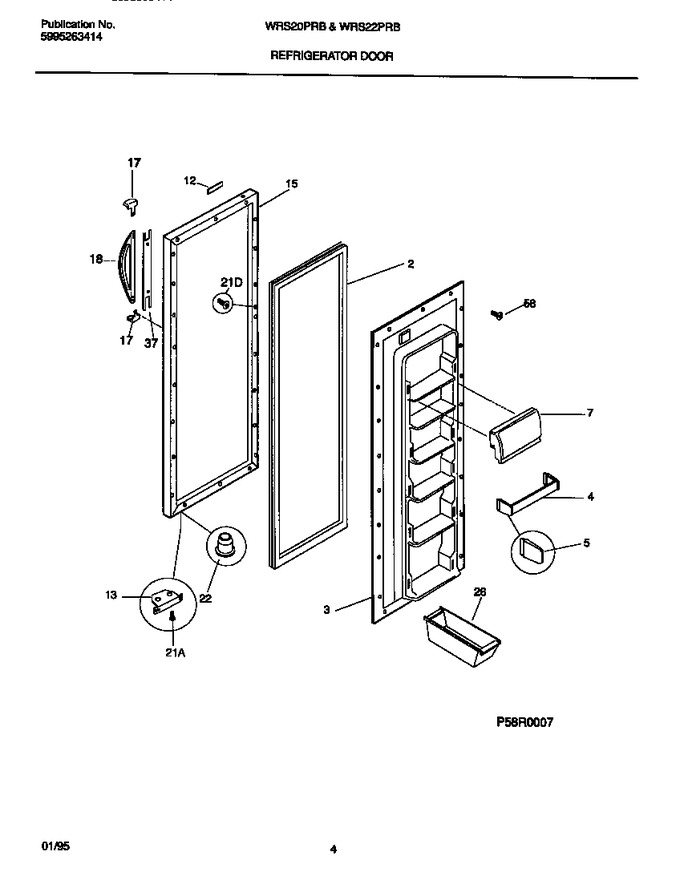

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734314 | Gasket-refr Door, White, Magnetic |
|
$ 243.34 | |||||
| 3 | 215009801 | Panel-inner Door,refr |
|
- | |||||
| 4 | 215700600 | Rack-door, W/end Caps |
|
- | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 215029910 | Door-dairy |
|
- | |||||
| 12 | 5315340712 | Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra |
|
- | |||||
| 12 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 12 | 215220302 | Label-nameplate, Gray/white Ltrs (not Illustrated) |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 215647201 | Panel, Refr Door, White, W/foam Insulatn |
|
- | |||||
| 17 | 215422000 | Handle End, Chrome |
|
- | |||||
| 18 | 218436901 | Handle-door, White |
|
- | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 37 | 215219801 | Trim-handle, 13.82``, Black/silver |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *90282 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| *90283 | 215361200 | Foam Strip, Handle Mtg Hole |
|
- | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 21D | 3051070 | Screw, Hex Washer Head, 10-32 X 1/2, Special |
|
- |
