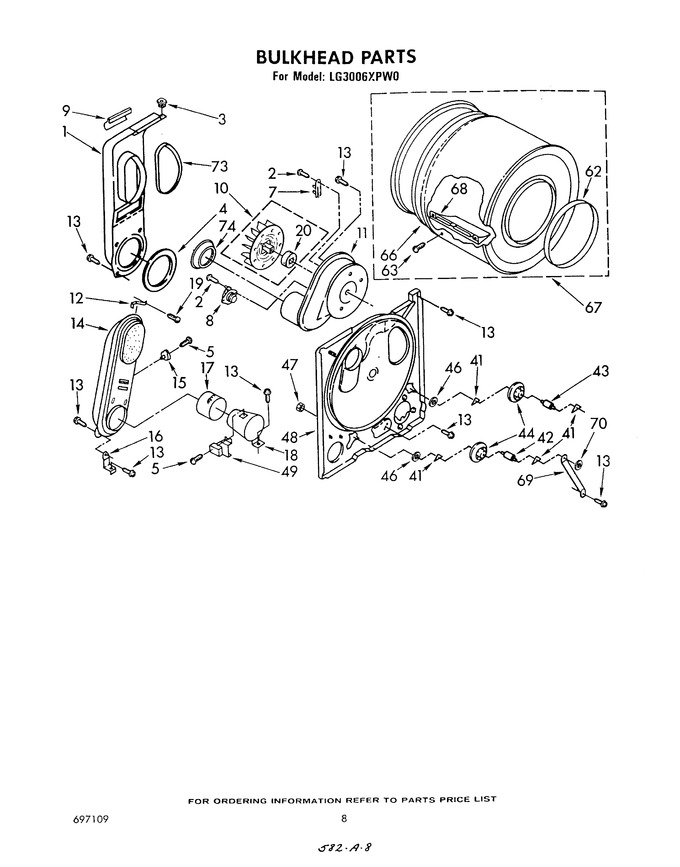

02 - Top And Console , Literature And Optional
03 - Cabinet
04 - 694670 Burner
05 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 272.35 | |||||
| 2 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 9.65 | ||||
| 3 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 16.41 | ||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 7 | WP3392519 | Fuse, Thermal (Replaces: 694511) |
|
Immediately | $ 22.46 | ||||
| 8 | AT022 | Thermostat, 150of (65.5oc) 341146 (alt.) (Replaces: 660039) |
|
Immediately | $ 31.65 | ||||
| 9 | 686770 | Support Protector |
|
- | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 695499) |
|
Immediately | $ 33.89 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 12.90 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 309.92 | |||||
| 15 | 660036 | Thermostat, 205of (96.1oc) 338471 (alt.) 341196 (alt.) |
|
- | |||||
| 16 | 337445 | Support, Heater Box (2) |
|
- | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 337450) |
|
$ 309.92 | |||||
| 18 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 309.92 | |||||
| 19 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 20 | 694630 | Seal, Blower |
|
- | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 65.44 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 42.57 | ||||
| 44 | 349241T | Roller, Support (Replaces: 349241) |
|
Immediately | $ 26.58 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.47 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685775 | Bulkhead |
|
- | |||||
| 49 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 113.02 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 56.50 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 695584) |
|
$ 302.60 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 132.28 | |||||
| 69 | 348945 | Bracket, Support |
|
- | |||||
| 70 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 7.77 | ||||
| 74 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 20.06 |
