| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 2 |
215734314 |
 |
Gasket-refr Door, Magnetic, White |
|
|
|
$ 243.34 |
|
|
| 3 |
215390401 |
|
Panel-inner Door,refr |
|
Appelez-nous
|
- |
|
|
|
| 4 |
215700600 |
|
Rack-door, W/ End Caps, (2) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
215267701 |
 |
Support-door Rack,``2-liter`` ,rh/lh |
|
|
Immediately |
$ 7.79 |
|
|
| 7 |
215029910 |
|
Door-dairy |
|
Appelez-nous
|
- |
|
|
|
| 13 |
5303289522 |
 |
Door Stop |
|
|
|
$ 40.17 |
|
|
| 15 |
215490901 |
|
Panel-refr Door, White, W/foam Insulatn |
|
Appelez-nous
|
- |
|
|
|
| 17 |
215422000 |
|
Handle End, Chrome |
|
Appelez-nous
|
- |
|
|
|
| 18 |
218074201 |
|
Handle-door, White |
|
Appelez-nous
|
- |
|
|
|
| 21 |
218843801 |
 |
Screw (Replaces: 5303001001) |
|
|
|
$ 14.41 |
|
|
| 22 |
5303289320 |
 |
Bearing-hinge |
|
|
|
$ 19.69 |
|
|
| 26 |
3204522 |
|
Container-egg |
|
|
|
$ 98.33 |
|
|
| 37 |
215421701 |
|
Trim-handle, 61.12``, Black/silver |
|
Appelez-nous
|
- |
|
|
|
| 49 |
215003412 |
|
Bin-door, Gallon |
|
Appelez-nous
|
- |
|
|
|
| 58 |
5308002748 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| *94945 |
5303917276 |
|
Insulation-door, Fiberglass, (bulk) |
|
|
|
$ 330.91 |
|
|
| *94945 |
215361200 |
|
Foam Strip, Handle Mtg Hole |
|
Appelez-nous
|
- |
|
|
|
| 21A |
215218600 |
|
Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
Appelez-nous
|
- |
|
|
|
| 21D |
215410900 |
|
Screw-handle Mtg, Hex Head, 10-32 X 3/8 |
|
Appelez-nous
|
- |
|
|
|
| 37A |
215399208 |
|
Trim-handle, 16.06``, White, Upper |
|
Appelez-nous
|
- |
|
|
|
| 37B |
215399207 |
|
Trim-handle, 31.68``, White, Lower |
|
Appelez-nous
|
- |
|
|
|

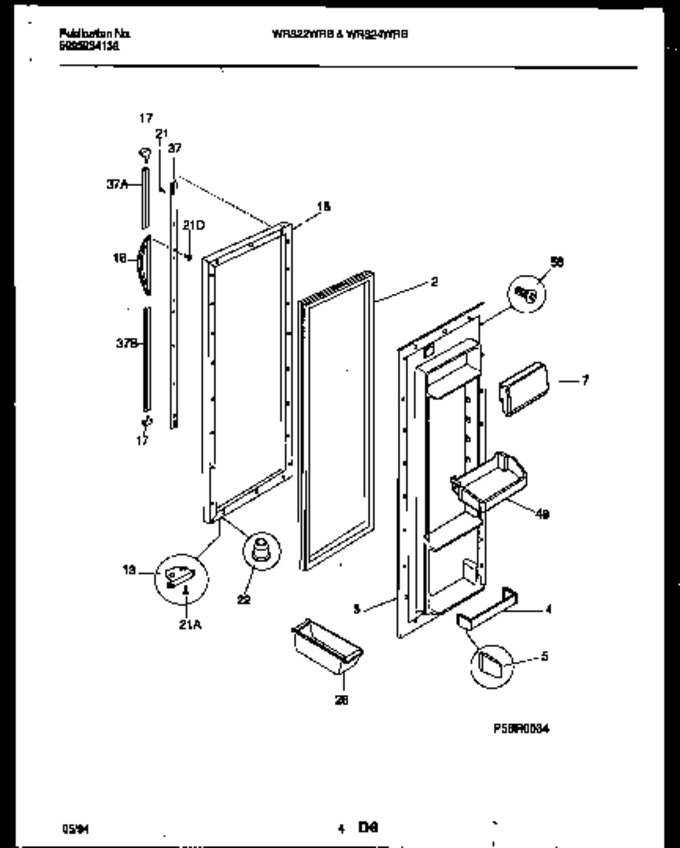

View Diagram in Separate Window
