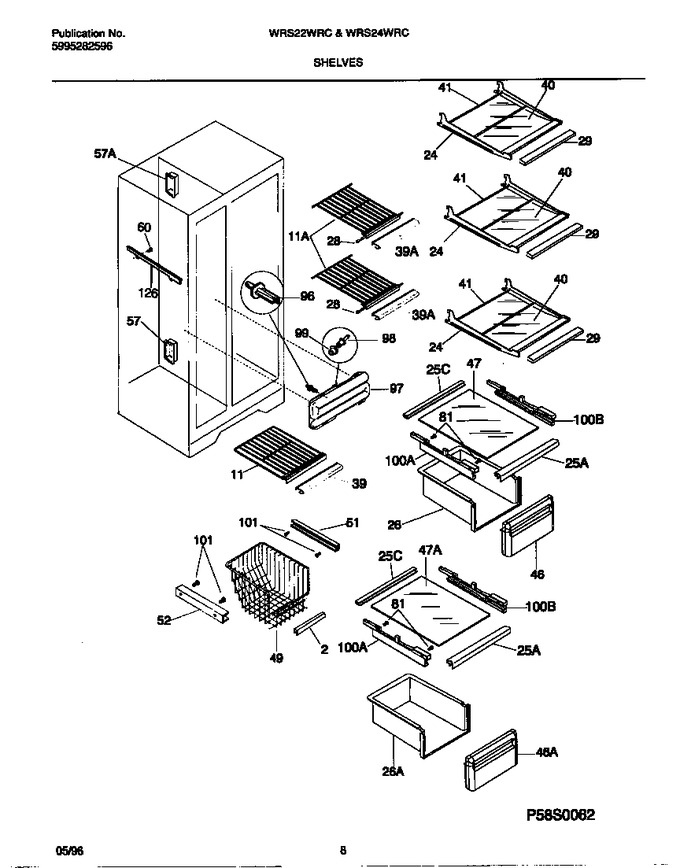

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
11	5303289504		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	218298001		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	215919137		Frame, Refr Shelf, Cantilever		Appelez-nous	-
25	218015302		Trim-storage Pan Cvr, Snap-on, Front		Appelez-nous	-
25	218015402		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303289501		Pan-storage,lower				$ 164.85
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		End Cap-shelf, Protector		Appelez-nous	-
29	215919456		Trim-refr Shelf, Front, (3)		Appelez-nous	-
39	215217583		Trim-frzr Shelf		Appelez-nous	-
39	215217584		Trim-frzr Shelf		Appelez-nous	-
40	218390549		Glass-refr Shelf, W/graphics		Appelez-nous	-
41	215919815		Trim-refr Shelf, Rear		Appelez-nous	-
46	215042030		Front-storage Pan, Lower		Appelez-nous	-
46	215042031		Front-storage Pan, Upper		Appelez-nous	-
47	218390552		Insert-pan Cover, Glass, W/graphics		Appelez-nous	-
47	215723552		Insert-pan Cover, Glass, Clear				$ 77.10
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303289064		Ferrule-air		Appelez-nous	-
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank Assy, Includes Tank, Grommets, Connectors   (Replaces: 215230300)				$ 121.63
98	5308015614		Connector - Tube				$ 34.57
99	5300186057		Grommet-tank				$ 28.98
100	218015501		Support-pan Cover, Lh				$ 37.26
100	218015601		Support-pan Cover, Rh				$ 55.18
101	5304455650		Screw, Hex Washer Head, 8-18ab X 3/4, Gusset/hanger   (Replaces: 215005000)				$ 14.18
*45568	215339900		Clip, Cantilevr Shlf				$ 5.83
126A	215205400		Rail-auger Bucket,lh				$ 64.00
126B	218232700		Rail-auger Bucket, Rh (not Illustrated)				$ 44.05
