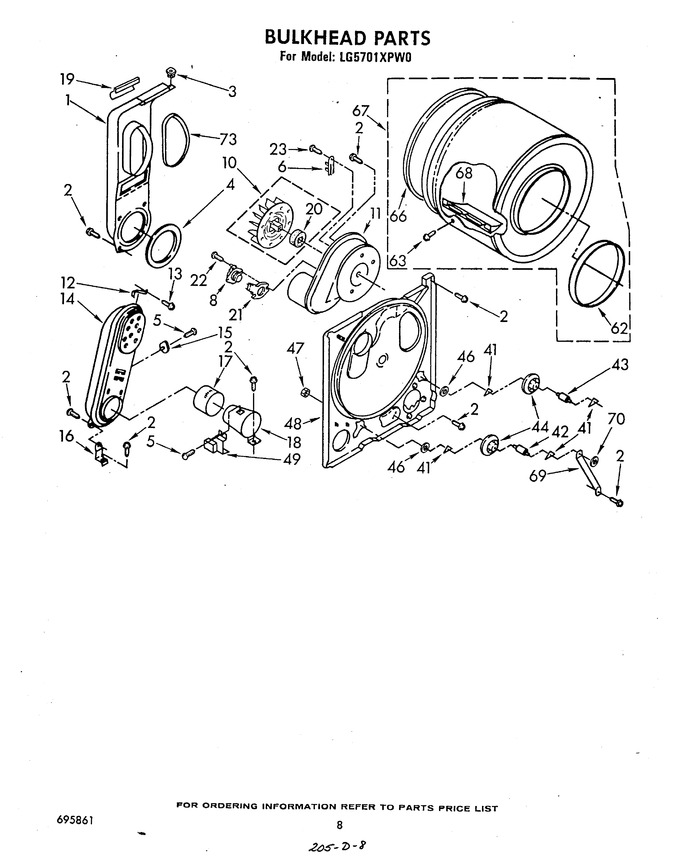

05 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute, Assembly   (Replaces: 694283)				$ 272.35
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
3	98460		Nut, Push-in				$ 12.07
4	W11415783		Seal, Lint Chute   (Replaces: 347139)			Immediately	$ 16.41
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
6	WP3392519		Fuse, Thermal   (Replaces: 694511)			Immediately	$ 22.46
8	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 45.46
10	WP694089		Wheel, Blower   (Replaces: 695499)			Immediately	$ 33.89
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 12.90
13	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
14	279900		Box, Heater   (Replaces: 685458)				$ 309.92
15	660036		Thermostat, 205 F (96 C)		Appelez-nous	-
15	341196		Thermostat, 205~f (96~c) (alt.)				$ 33.17
15	338471		Thermostat, 205~f (96~c) (alt.)		Appelez-nous	-
16	337445		Support, Heater Box (2)		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 337450)				$ 309.92
18	279900		Funnel, Burner   (Replaces: 347389)				$ 309.92
19	686770		Support Protector		Appelez-nous	-
20	694630		Seal, Blower		Appelez-nous	-
21	61298		Thermostat, Heater		Appelez-nous	-
22	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 695240)			Immediately	$ 7.01
23	WP965173		Screw, 8-18 X 3/8   (Replaces: 695239)			Immediately	$ 9.65
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 7.92
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 65.44
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 42.57
44	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 26.58
46	WP348197		Washer, Support   (Replaces: 348197)				$ 6.47
47	120377		Nut, 3/8-16		Appelez-nous	-
48	685769		Bulkhead		Appelez-nous	-
49	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
62	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 113.02
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	239087		Seal, Rear Drum   (Replaces: 337449)			Immediately	$ 56.50
67	3396775		Drum Assembly   (Replaces: 337928)				$ 302.60
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 132.28
69	348945		Bracket, Support		Appelez-nous	-
70	WP90296		Clip   (Replaces: 90296)				$ 7.07
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 7.77
