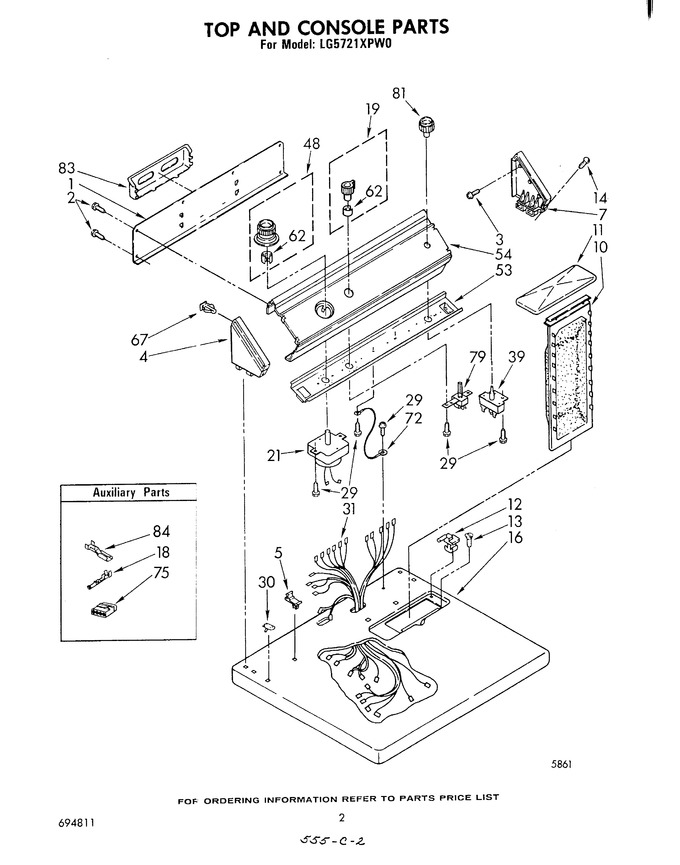

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2$fl   (Replaces: 343641)			Immediately	$ 7.07
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	358472		Stop, Push-in (2)		Appelez-nous	-
7	63795		Cap, End. (r.h.)				$ 14.10
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	695022		Cover, Lint Screen (toast)		Appelez-nous	-
11	695023		Cover, Lint Screen (platinum)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP388326		Screw, 8-18 X 1   (Replaces: 64211)				$ 7.30
16	695507		Top (white)		Appelez-nous	-
16	695508		Top (almond)		Appelez-nous	-
16	695509		Top (golden Harvest)		Appelez-nous	-
16	695510		Top (toast)		Appelez-nous	-
16	695511		Top (platinum)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
19	386629		Knob, Temperature Selector		Appelez-nous	-
21	687950		Timer Assembly, 60 Hz.		Appelez-nous	-
29	WP3390631		Screw   (Replaces: 339554)				$ 7.04
30	358473		Nut, Push-in (2)				$ 5.84
31	696178		Harness, Wiring		Appelez-nous	-
39	692021		Switch, Push-to-start (alt.)		Appelez-nous	-
39	346364		Switch, Push-to-start (alt.)		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
48	695555		Timer Knob & Dial		Appelez-nous	-
53	386627		Bracket, Control		Appelez-nous	-
54	695958		Panel, Control		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	353424		Plug, 3-way Terminal (use W/94613)				$ 18.95
75	353425		Receptacle, 3-way Terminal (use W/94614)		Appelez-nous	-
79	694720		Switch, Temperature Selector		Appelez-nous	-
81	695946		Knob, Push To Start		Appelez-nous	-
83	63020		Rack, Literature				$ 30.32
84	94613		Terminal		Appelez-nous	-
	LIT693849		Guide, Dryer		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT694811		List, Service Parts		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	LIT696233		Instructions, Installation		Appelez-nous	-
	LIT693694		Use & Care Guide		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	799351		Thinner (1 Gal.)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	LIT677813		(belt Drive)		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 31.51
	LIT677967		Dishwasher		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
