View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Top And Console , Literature And Optional

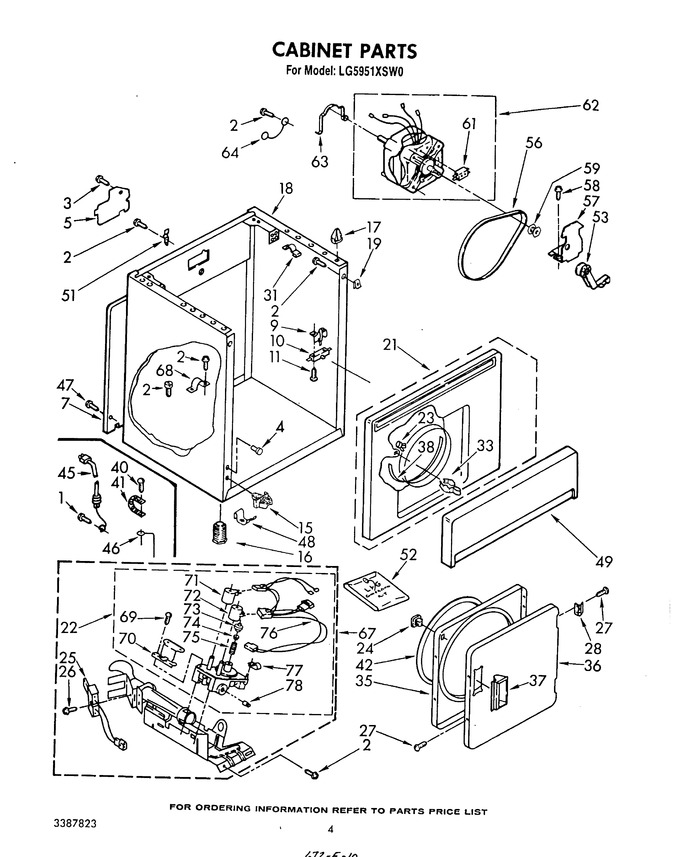

03 - Cabinet
04 - 694670 Burner
05 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | WP693995 | Screw, 10-16 X 1/2 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 4 | 238614 | Bumper |
|
$ 72.68 | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 7 | 347736 | Panel, Rear |
|
- | |||||
| 9 | WP691581 | Door Lever (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 11 | WP98129 | Screw, 6-20 X 7/8 (Replaces: 98129) |
|
$ 6.80 | |||||
| 15 | 696232 | Clip, Toe Panel (2) |
|
- | |||||
| 16 | 49621 | Foot, Dryer (plastic) (4) (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 17 | WP18776 | Locator, Top (2) (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 18 | 690851 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 694875 | Cabinet (platinum) |
|
- | |||||
| 18 | 690847 | Cabinet (white) |
|
- | |||||
| 18 | 690848 | Cabinet (almond) |
|
- | |||||
| 18 | 694874 | Cabinet (toast) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 21 | 693202 | Front Panel Assembly (also Includes Illus. 19) (white) |
|
- | |||||
| 21 | 695262 | Front Panel Assembly (also Includes Illus. 19) (platinum) |
|
- | |||||
| 21 | 695261 | Front Panel Assembly (also Includes Illus. 19) (toast) |
|
- | |||||
| 21 | 693206 | Front Panel Assembly (also Includes Illus. 19) (golden Harvest) |
|
- | |||||
| 21 | 693203 | Front Panel Assembly (also Includes Illus. 19) (almond) |
|
- | |||||
| 22 | 279923 | Valve, Gas (complete) 60 Hz. (Replaces: 694054) |
|
Immediately | $ 257.43 | ||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 25 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 686953) |
|
$ 6.75 | |||||
| 26 | 279311 | Ignitor (alt.) (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 26 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 27 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 28 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 7.58 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 35 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 177.82 | |||||
| 36 | 689314 | Door, Front (almond) |
|
- | |||||
| 36 | 689319 | Door Front (golden Harvest) |
|
- | |||||
| 36 | 695214 | Door, Front (toast) |
|
- | |||||
| 36 | 695215 | Door, Front (platinum) |
|
- | |||||
| 36 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 132.65 | ||||
| 37 | 689584 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | WP686711 | Handle, Door (white) (Replaces: 686715) |
|
Immediately | $ 7.16 | ||||
| 37 | 689306 | Handle, Door (almond) |
|
- | |||||
| 37 | 695286 | Handle, Door (platinum) |
|
- | |||||
| 37 | WP686711 | Handle, Door (toast) (Replaces: 695285) |
|
Immediately | $ 7.16 | ||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 40 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 41 | 22965 | Strap, Ground |
|
- | |||||
| 42 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 48.27 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 108.53 | |||||
| 46 | 364089 | Wire, Ground |
|
- | |||||
| 47 | WP489069 | Screw, Hex Washer Head (7) (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 48 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 49 | 692427 | Panel, Toe (white) |
|
- | |||||
| 49 | 695143 | Panel, Toe (platinum) |
|
- | |||||
| 49 | 695142 | Panel, Toe (toast) |
|
- | |||||
| 49 | 692431 | Panel, Toe (golden Harvest) |
|
- | |||||
| 49 | 692428 | Panel, Toe (almond) |
|
- | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 52 | 279243 | Conversion Kit Type 1 Natural To Type 3 (m.f.d. Gas) |
|
- | |||||
| 52 | 49572A | Conversion Kit (type 1, 2 & 3 To Type 4) (l.p.g.) (Replaces: 694572) |
|
Immediately | $ 32.57 | ||||
| 53 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 694871) |
|
Immediately | $ 45.92 | ||||
| 61 | 279827 | Switch (use W/695075 Motor) (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 695075) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 64 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 67 | 694670 | Burner Assembly, 60 Hz. (refer To Pages 6 & 7 For Further Breakdown) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe (rear) |
|
- | |||||
| 69 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 70 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 71 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 72 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 73 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 31.11 | |||||
| 74 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.26 | |||||
| 75 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 21.84 | |||||
| 76 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 218.68 | |||||
| 77 | 694510 | Clip, Harness |
|
- | |||||
| 78 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- |
