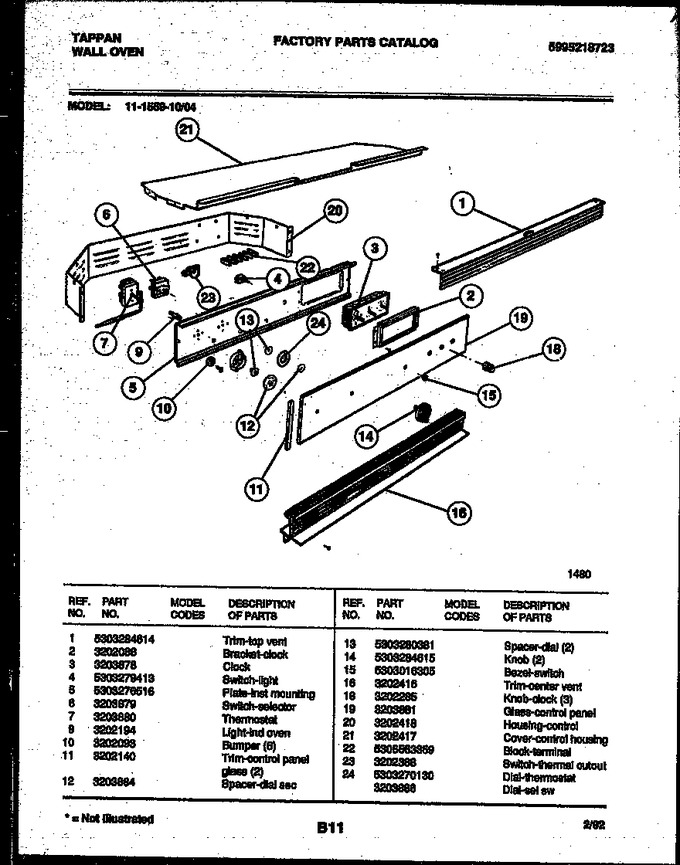

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303284614 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3203878 | Clock |
|
- | |||||
| 4 | 5303279413 | Switch-light |
|
- | |||||
| 5 | 5303276516 | Plate-inst Mounting |
|
- | |||||
| 6 | 3203879 | Switch-selector |
|
- | |||||
| 7 | 3203880 | Thermostat |
|
- | |||||
| 9 | 3202194 | Light-ind Oven |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202140 | Trim, Control Panel Glass (2) |
|
- | |||||
| 12 | 3203884 | Spacer - Dial Sec. |
|
- | |||||
| 13 | 5303280381 | Spacer-dial (2) |
|
- | |||||
| 14 | 5303284615 | Knob (2) |
|
- | |||||
| 15 | 5303016305 | Bezel - Switch |
|
- | |||||
| 16 | 3202416 | Trim-center Vent |
|
- | |||||
| 18 | 3202285 | Knob-clock (3) |
|
- | |||||
| 19 | 3203881 | Glass-control Panel |
|
- | |||||
| 20 | 3202418 | Housing-control |
|
- | |||||
| 21 | 3202417 | Cover-control Housing |
|
- | |||||
| 22 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 23 | 318003605 | Switch - Thermal Cutout (Replaces: 3202388) |
|
$ 178.61 | |||||
| 24 | 5303270130 | Dial-thermostat |
|
- | |||||
| 24 | 3203886 | Dial - Sel. Sw. |
|
- |
