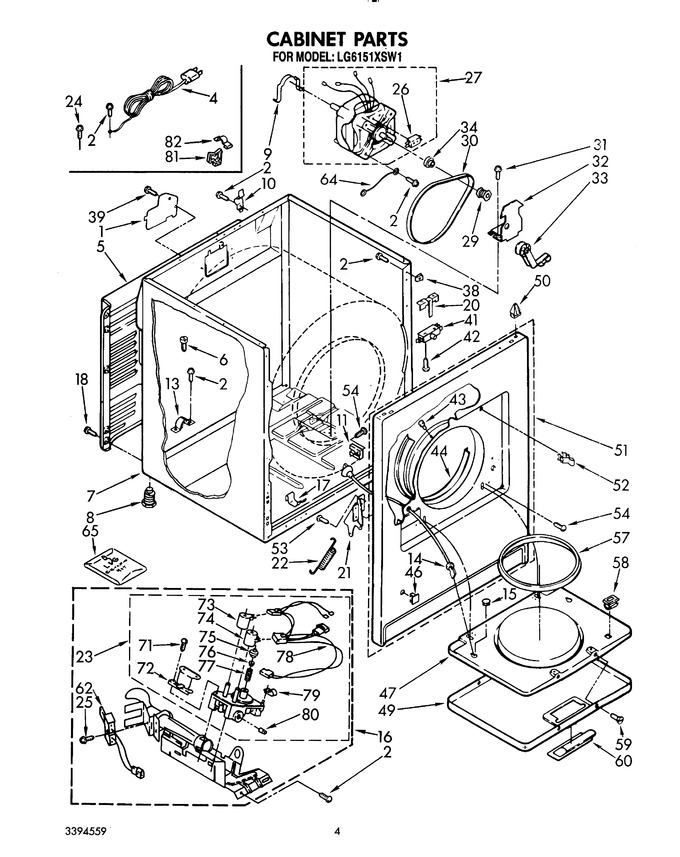

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11736322 | Cover, Terminal Block (Replaces: 690893) |
|
- | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 4 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 108.53 | |||||
| 5 | 347736 | Panel, Rear |
|
- | |||||
| 6 | WP681414 | Screw, Burner Mounting (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 3394110 | Cabinet (almond) |
|
- | |||||
| 7 | 3394109 | Cabinet (white) |
|
- | |||||
| 8 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 9 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 9 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 10 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 11 | 337182 | Guide, Cable (l.h) |
|
$ 5.51 | |||||
| 11 | 337183 | Guide, Cable (r.h.) |
|
$ 5.51 | |||||
| 13 | 341029 | Clamp, Pipe |
|
- | |||||
| 14 | 230131 | Cable, Door (2) |
|
$ 8.41 | |||||
| 15 | WP660975 | Plug, Button (2) (Replaces: 660975) |
|
$ 6.79 | |||||
| 16 | 694670 | Burner (complete) 60 Hz. (refer To Pages For Further Breakdown) |
|
- | |||||
| 17 | W10854425 | Clip, Hinge (2) (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 18 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 20 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 7.28 | ||||
| 21 | WP238460 | Hinge, Door (l.h.) (Replaces: 238460) |
|
$ 6.78 | |||||
| 21 | 238456 | Hinge, Door (r.h.) |
|
$ 5.33 | |||||
| 22 | WP337186 | Spring, Door (2) (Replaces: 337186) |
|
$ 7.25 | |||||
| 23 | 279923 | Valve, Gas 60 Hz. (Replaces: 694054) |
|
Immediately | $ 257.43 | ||||
| 24 | W10850756 | Screw, 10-32 X 1/2 (external Ground) (Replaces: 697776) |
|
$ 6.98 | |||||
| 25 | WPW10366705 | Lock Screw & Washer (8-32 X 5/8) (Replaces: 686953) |
|
$ 6.75 | |||||
| 26 | 279827 | Switch (use W/3391888 Motor) (Replaces: 3388235) |
|
Immediately | $ 172.76 | ||||
| 27 | 279827 | Motor 60 Hz. (Replaces: 3391888) |
|
Immediately | $ 172.76 | ||||
| 29 | WP8066184 | Pulley 60 Hz (Replaces: 3389627) |
|
Immediately | $ 45.92 | ||||
| 30 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 16.34 | ||||
| 31 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 32 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 33 | WP691366 | Ideler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 34 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 119.21 | ||||
| 38 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 39 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 41 | W10820036 | Switch, Door (Replaces: 344475) |
|
Immediately | $ 27.45 | ||||
| 42 | WP98129 | Screw, 6-20 X 7/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 43 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 44 | 279264 | Seal & Bearing (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 46 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 46 | 3394976 | Plug, Front Panel (almond) |
|
- | |||||
| 47 | 695953 | Door, Rear |
|
- | |||||
| 49 | 348737 | Door, Front (white) |
|
- | |||||
| 49 | 689485 | Door, Front (almond) |
|
- | |||||
| 50 | WP18776 | Lock, Front To Top (2) (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 51 | 3394891 | Panel, Front (almond) |
|
- | |||||
| 51 | 3394890 | Panel, Front (white) |
|
- | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 53 | WP488627 | Screw, 8-15 X 1/2 (Replaces: 688160) |
|
$ 6.81 | |||||
| 54 | WP90767 | Screw, 8 X 3/8 (Replaces: 339493) |
|
Immediately | $ 7.04 | ||||
| 57 | W11613302 | Seal, Door (Replaces: 685763) |
|
$ 48.27 | |||||
| 58 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 59 | WP694091 | Screw, Door (Replaces: 694091) |
|
$ 6.47 | |||||
| 60 | WP348721 | Handle, Door (white) (Replaces: 690270) |
|
$ 70.10 | |||||
| 60 | 690271 | Handle, Door (almond) |
|
- | |||||
| 62 | 279311 | Ignitor (686590) (alt.) (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 64 | 690236 | Wire, Ground (motor) |
|
- | |||||
| 65 | 49572A | Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg) (Replaces: 694572) |
|
Immediately | $ 32.57 | ||||
| 65 | 279243 | Kit, Conversion (type 1 To Type 3) |
|
- | |||||
| 71 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) (2) |
|
- | |||||
| 72 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 73 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 74 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 75 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 31.11 | |||||
| 76 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.26 | |||||
| 77 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 21.84 | |||||
| 78 | WP3401850 | Harness, Wiring (complete) (Replaces: 694426) |
|
$ 218.68 | |||||
| 79 | 694510 | Clip, Harness |
|
- | |||||
| 80 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 81 | 688412 | Clip, Harness |
|
- | |||||
| 82 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 |
