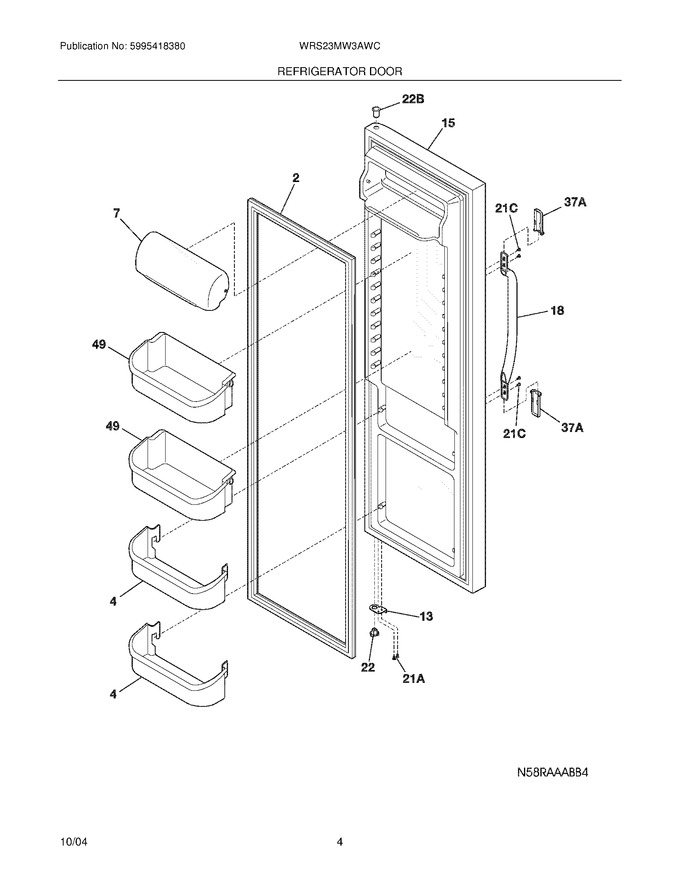

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240363701 | Bin-door,2-liter |
|
Immediately | $ 59.42 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 13 | 5303918455 | Door Stop,white,ref (Replaces: 240537101) |
|
$ 142.04 | |||||
| 15 | 240451911 | Door-refr,white ,complete Assy |
|
$ 428.80 | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 22 | 240328201 | Bearing-hinge(ref),closer |
|
Immediately | $ 17.72 | ||||
| 49 | 240324501 | Bin-door,gallon |
|
Immediately | $ 69.06 | ||||
| 21A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 21C | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 22B | 240328401 | Bearing-hinge(ref),natural ,upper |
|
$ 12.97 | |||||
| 37A | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 | |||||
| 37A | 215870629 | Trim-handle,2.47`` ,white ,w/satin Al Band |
|
$ 55.99 | |||||
| F2 | 241786015 | Gasket-refr Door,white ,magnetic (Replaces: 240390603) |
|
Immediately | $ 94.66 |
