SELECT A DIAGRAM

02 - Top And Console , Literature And Optional


03 - Cabinet

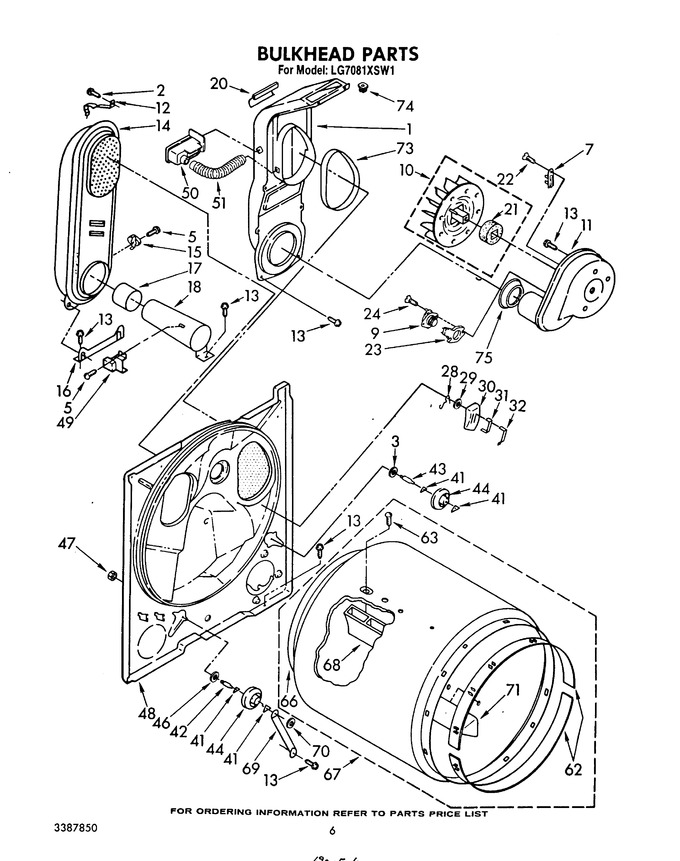

04 - Bulkhead


05 - 694670 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	686214		Lint Chute Assembly		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
3	WP3388703		Washer-support   (Replaces: 3388703)				$ 6.72
5	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
7	WP3392519		Fuse, Thermal   (Replaces: 694511)			Immediately	$ 22.46
9	AT022		Thermostat, Operating 150~f (65.6~c)   (Replaces: 660039)			Immediately	$ 31.65
9	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 45.46
10	WP694089		Wheel, Blower   (Replaces: 695499)			Immediately	$ 33.89
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 12.90
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	279900		Box, Heater   (Replaces: 685458)				$ 309.92
15	341196		Thermostat, 205~f (96~c) (alt.)				$ 33.17
15	660036		Thermostat, 205 F (96 C)		Appelez-nous	-
16	348484		Support, Heater Box		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 348516)				$ 309.92
18	279900		Funnel, Burner   (Replaces: 347389)				$ 309.92
20	686770		Support Protector		Appelez-nous	-
21	694630		Seal, Blower		Appelez-nous	-
22	WP965173		Screw, 8-18 X 3/8   (Replaces: 695239)			Immediately	$ 9.65
23	61894		Heater, Thermostat				$ 37.38
24	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 695240)			Immediately	$ 7.01
28	WP342267		Clip, Sensor   (Replaces: 342267)				$ 6.98
29	WP298877		Washer, Insulating   (Replaces: 298877)				$ 20.32
30	279366		Pad, Sensor   (Replaces: 348861)				$ 86.27
31	WP348859		Electrode, Inside   (Replaces: 348859)				$ 7.18
32	WP348860		Electrode, Outside   (Replaces: 348860)				$ 7.25
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 7.92
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 65.44
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 42.57
44	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 26.58
46	WP348197		Washer, Support   (Replaces: 348197)				$ 6.47
47	120377		Nut, 3/8-16		Appelez-nous	-
48	685823		Bulkhead		Appelez-nous	-
49	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
50	690981		Alert, Lint		Appelez-nous	-
51	686577		Hose, Differential		Appelez-nous	-
62	279441		Ring, Bearing   (Replaces: 692526)			Immediately	$ 59.60
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	279408		Seal, Rear Drum   (Replaces: 347885)				$ 66.22
67	W10899578		Drum Assembly   (Replaces: 695587)				$ 321.89
68	WP692490		Baffle, Drum (2)   (Replaces: 692490)				$ 143.34
69	W11684613		Bracket, Support   (Replaces: 348944)				$ 18.85
70	WP90296		Clip   (Replaces: 90296)				$ 7.07
71	WP3403636		Baffle, Drum (1)   (Replaces: 692491)				$ 124.79
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 7.77
74	98460		Nut, Push-in (2)				$ 12.07
75	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 20.06

    View Diagram in Separate Window       Print Part List
