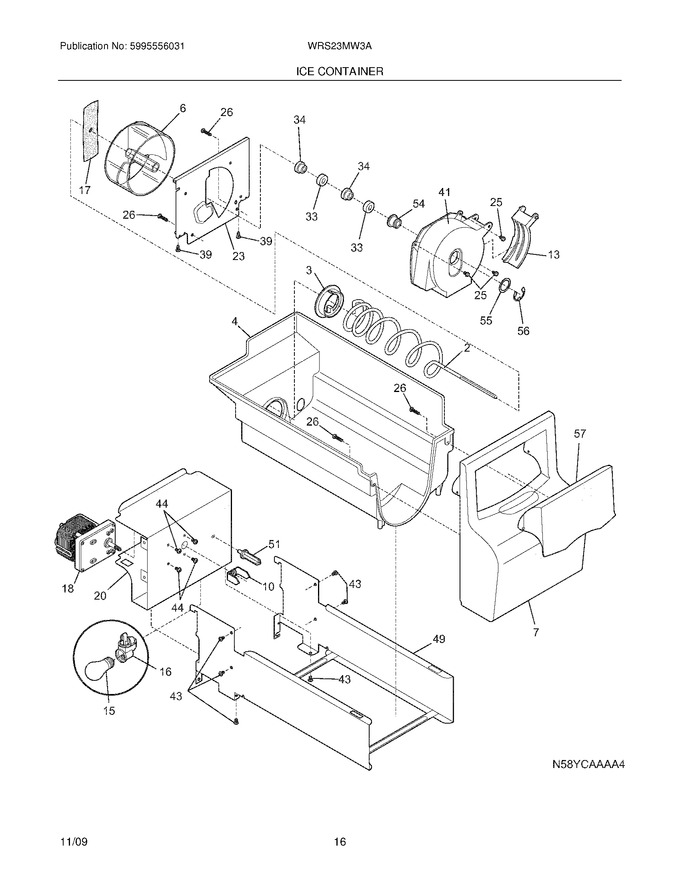

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241716101		Auger-ice				$ 117.32
3	241685201		Cam-drive				$ 41.81
4	241734001		Container-ice,bucket Only				$ 105.61
6	241685101		Drum-ice Disp				$ 51.74
7	241734201		Front-ice Container				$ 87.04
10	241726501		Bar-drive				$ 58.82
13	241885001		Gate   (Replaces: 241685301)				$ 75.83
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	241684503		Drive Blade   (Replaces: 241684501)				$ 17.44
20	241734801		Cover-motor		Appelez-nous	-
23	241684001		Plate-front				$ 149.54
25	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 241690701)			Immediately	$ 13.46
26	241690602		Screw,cr Pan Hd ,10-16 X 0.500   (Replaces: 215503205)			Immediately	$ 10.63
33	241684802		Spacer   (Replaces: 241684801)				$ 9.10
34	241689802		Spacer   (Replaces: 241689801)				$ 8.34
39	241690501		Screw				$ 16.30
41	241885001		Housing-crusher   (Replaces: 241685601)				$ 75.83
43	218359202		Screw,pan Head ,8-32 X 0.250				$ 10.63
44	218359202		Screw,8-32 X 1/4   (Replaces: 241842101)				$ 10.63
49	241734401		Rail Assy				$ 207.67
51	241676301		Rotation Stop		Appelez-nous	-
54	241685001		Nut-auger				$ 19.85
55	241690306		Washer				$ 49.62
56	241690201		E-ring				$ 19.13
57	241734101		Door-access				$ 50.61
F18	242221501		Motor-auger   (Replaces: 241676201)				$ 200.51
NI	241857001		Harness-wiring,container		Appelez-nous	-
NI	240507202		Deflector-ice Container				$ 62.37
NI	241860802		Ice Container Assy,w/moving Parts				$ 270.00
