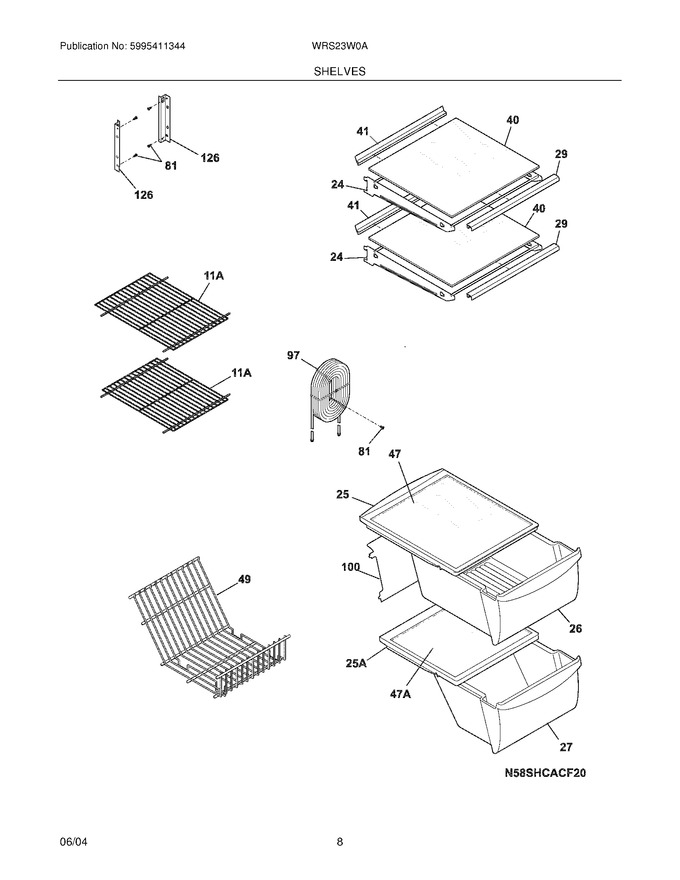

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	240373107		Frame-refr Shelf,cantilever				$ 156.71
25	240354502		Cover-crisper Pan,upper			Immediately	$ 100.02
26	240354723		Pan-crisper,upper   (Replaces: 240354703)			Immediately	$ 164.31
27	240354803		Pan-crisper,lower		Appelez-nous	-
29	240357705		Trim-shelf,front				$ 54.81
40	240350622		Glass-shelf,refr Shelf ,(3)				$ 112.60
41	240357805		Trim-shelf,rear				$ 35.28
47	240350613		Insert-pan Cover,glass   (Replaces: 240350631)				$ 123.62
49	5303296955		Trivet/basket		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240545301		Water Tank Assy,coiled Tubing ,no Filter				$ 275.42
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 61.28
126	241674402		Channel,auger Mtg ,rh   (Replaces: 218867406)				$ 43.24
126	241674401		Channel,auger Mtg ,lh   (Replaces: 218867405)				$ 47.48
11A	5304532465		Shelf-freezer,fixed Wire   (Replaces: 240338701)				$ 54.10
25A	240354602		Cover-crisper Pan,lower			Immediately	$ 88.46
47A	240350614		Insert-pan Cover,glass				$ 145.60
