SELECT A DIAGRAM

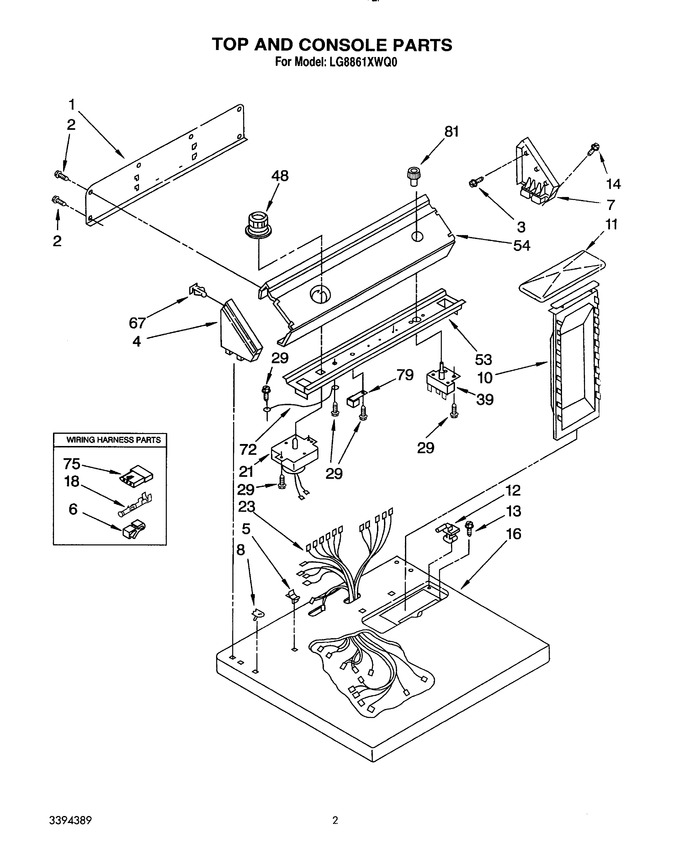

02 - Top And Console, Lit/optional


03 - Cabinet


04 - Burner Assembly


05 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.07
3	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
4	63793		Cap, End (l.h.)		Appelez-nous	-
5	358472		Stop, Push-in (2)		Appelez-nous	-
6	689180		Clip, Harness		Appelez-nous	-
7	63799		Cap, End (r.h.)				$ 80.66
8	358473		Nut, Push-in (2)				$ 5.84
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP388326		Screw, End Cap To Top   (Replaces: 3353145)				$ 7.30
16	3393385		Top (white)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
21	3394734		Timer Assembly, 60 Hz.		Appelez-nous	-
23	3394738		Harness, Wiring		Appelez-nous	-
29	WP3390631		Screw   (Replaces: 339554)				$ 7.04
39	346364		(alt.)		Appelez-nous	-
39	692021		(alt.)		Appelez-nous	-
39	660936		Switch, Push-to-start		Appelez-nous	-
48	3387905		Timer Knob Assembly		Appelez-nous	-
53	3394061		Bracket, Control		Appelez-nous	-
54	3387698		Panel, Control		Appelez-nous	-
67	689559		Clip, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	691707		Receptacle, Latching (3-way) (uses Terminal 94614)		Appelez-nous	-
79	WP694419		Buzzer, Mini Temperature   (Replaces: 694419)				$ 114.90
81	3393199		Knob, Push-to-start		Appelez-nous	-
	LIT3395437		Use & Care Guide		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT3394389		List, Service Parts		Appelez-nous	-
	LIT3395320		Instructions, Installation		Appelez-nous	-
	LIT3391427		Guide, Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
