SELECT A DIAGRAM

01 - Cover


03 - Freezer Door

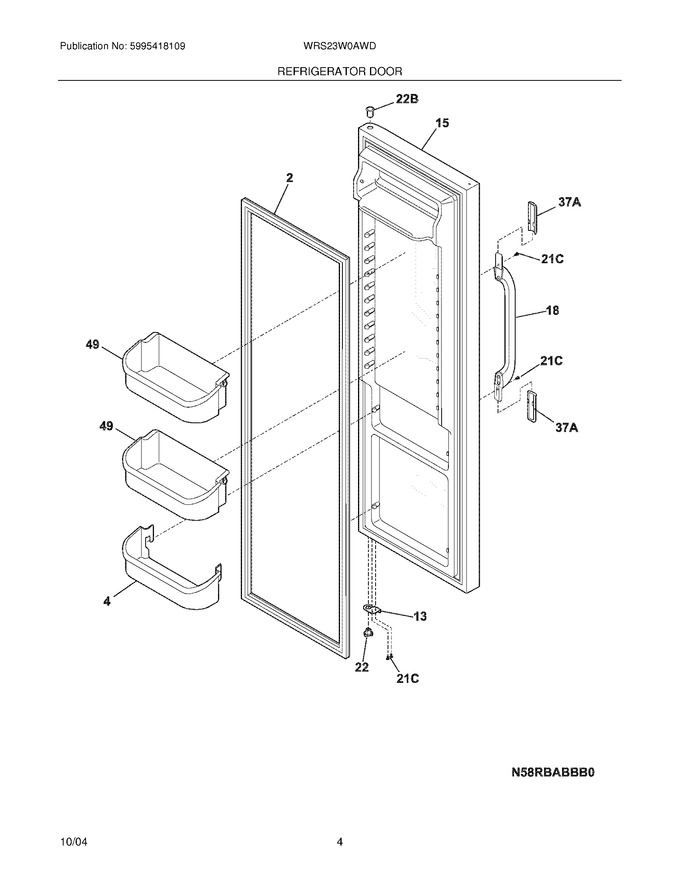

05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
13	5303918455		Door Stop,white,ref   (Replaces: 240537101)				$ 142.04
15	240451924		Door-refr,white ,complete Assy				$ 276.56
18	218668404		Handle-door,black		Appelez-nous	-
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
49	240324501		Bin-door,gallon			Immediately	$ 69.06
21C	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22B	240328401		Bearing-hinge(ref),natural ,upper				$ 12.97
37A	218811645		Trim-handle,4.97`` ,black ,w/lock		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
F2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 240390603)			Immediately	$ 94.66

    View Diagram in Separate Window       Print Part List
