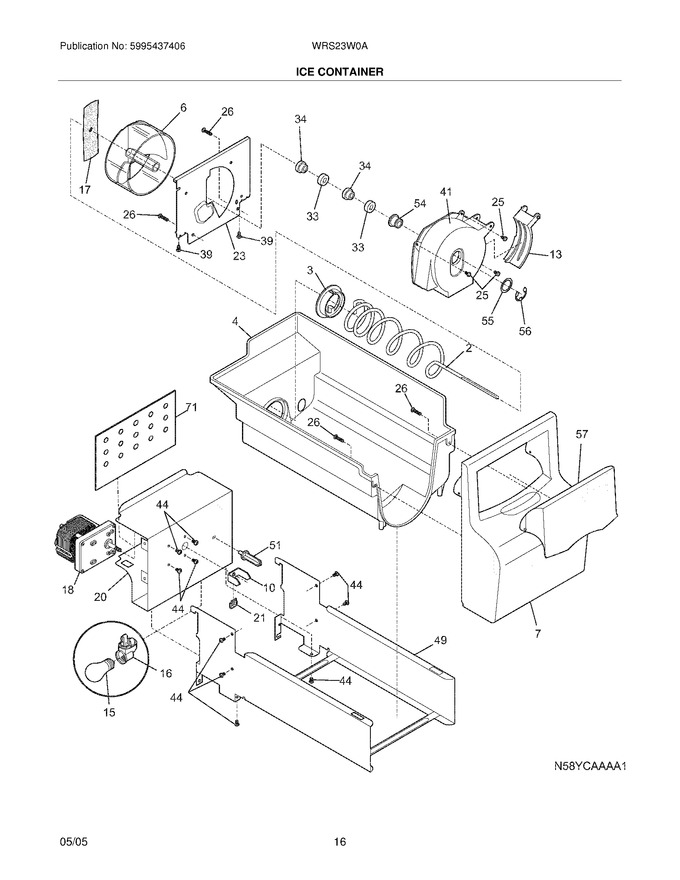

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241716101		Auger-ice   (Replaces: 5304428402)				$ 117.32
3	241685201		Cam-drive   (Replaces: 5304404343)				$ 41.81
4	241734001		Container-ice,bucket Only   (Replaces: 218815300)				$ 105.61
6	241685101		Drum-ice Disp   (Replaces: 5304404346)				$ 51.74
7	241734201		Front-ice Container   (Replaces: 218815400)				$ 87.04
10	241726501		Bar-drive   (Replaces: 241624801)				$ 58.82
13	241885001		Gate   (Replaces: 5304404359)				$ 75.83
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	241684503		Drive Blade   (Replaces: 5304404345)				$ 17.44
20	5304407106		Cover-motor		Appelez-nous	-
21	241726501		Nut-drive   (Replaces: 215285100)				$ 58.82
23	241684001		Plate-front   (Replaces: 5304404347)				$ 149.54
25	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 5304404362)			Immediately	$ 13.46
26	5304420654		Screw-thermo/sprt`4-24 X 0.375 `(4)		Appelez-nous	-
33	241684802		Spacer   (Replaces: 5304404351)				$ 9.10
34	5304404349		Spacer		Appelez-nous	-
39	241690501		Screw   (Replaces: 5304404365)				$ 16.30
41	241885001		Housing-crusher   (Replaces: 5304404358)				$ 75.83
44	218359200		Screw,pan Head ,8-32 X 0.250		Appelez-nous	-
49	5304404880		Rail Assy		Appelez-nous	-
51	5304404336		Rotation Stop		Appelez-nous	-
54	241685001		Nut-auger   (Replaces: 5304404357)				$ 19.85
55	5304404360		Washer		Appelez-nous	-
56	241690201		E-ring   (Replaces: 5304404361)				$ 19.13
57	241734101		Door-access   (Replaces: 5304404363)				$ 50.61
71	241577301		Cover-rear Auger				$ 36.77
F18	5304462594		Motor-auger   (Replaces: 5304404330)				$ 314.22
NI	5304407107		Wiring Harness,auger Motor		Appelez-nous	-
NI	215781700		Clip-tube		Appelez-nous	-
NI	240323807		Ice Container Assy,w/moving Parts		Appelez-nous	-
