SELECT A DIAGRAM

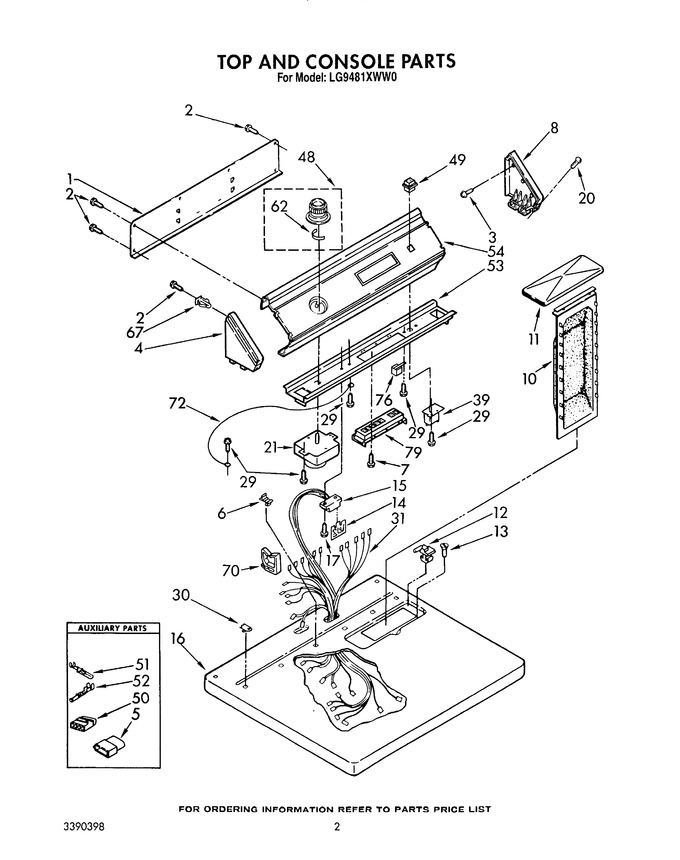

02 - Top And Console, Lit/optional


03 - Cabinet


04 - Bulkhead


05 - 694670 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	386367		Panel, Rear Console		Appelez-nous	-
2	WP489069		Screw, 10-16 X 1/2   (Replaces: 693994)			Immediately	$ 7.07
3	355326		Screw, 13-16 X 5/8		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	353424		Plug, 3-way Terminal				$ 18.95
6	358472		Stop, Push-in (2)		Appelez-nous	-
7	WP273556		Screw   (Replaces: 98881)			Immediately	$ 7.04
8	63795		Cap, End. (r.h.)				$ 14.10
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 33.49
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	661513		Control, Electronic		Appelez-nous	-
15	341141		Connector, Edge		Appelez-nous	-
16	695507		Top (white)		Appelez-nous	-
16	695508		Top (almond)		Appelez-nous	-
17	WP681414		Screw, Ground 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
20	WP388326		Screw, 8-18   (Replaces: 64211)				$ 7.30
21	3389865		Timer Assembly (60 Hz.)				$ 164.72
29	WP3390631		Screw   (Replaces: 339554)				$ 7.04
30	358473		Nut, Push-in (2)				$ 5.84
31	3392856		Harness, Wiring		Appelez-nous	-
39	348314		Relay, Push-to-start		Appelez-nous	-
48	3387900		Timer Knob Assembly		Appelez-nous	-
49	3391230		Knob, Push To Start		Appelez-nous	-
50	691707		Receptacle, Terminal		Appelez-nous	-
51	94613		Terminal, (male)		Appelez-nous	-
52	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
53	3391255		Bracket, Control		Appelez-nous	-
54	3391301		Panel, Control		Appelez-nous	-
62	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
67	689559		Nut, Push-on (4)		Appelez-nous	-
70	688412		Clip, Retainer		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
76	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 114.90
79	3392846		Switch, Clean-touch		Appelez-nous	-
	LIT3391427		Guide, Dryer		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	LIT3391358		Use & Care Guide		Appelez-nous	-
	LIT3393137		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT3390398		List, Service Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
