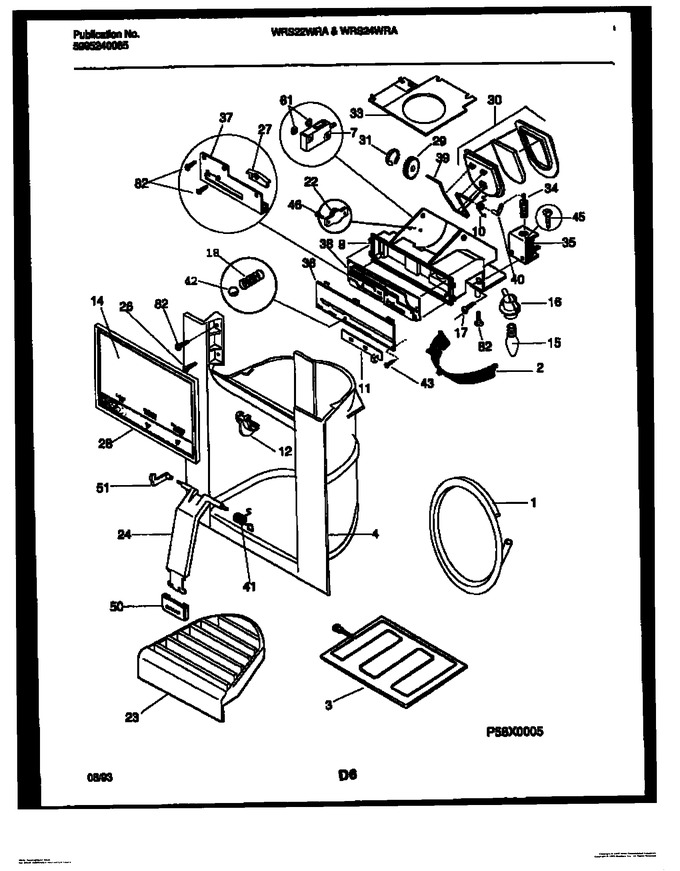

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
1	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
2	215732118		Deflector-ice Disp, Black		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	215922301		Housing-dispenser, White				$ 140.86
7	215765600		Switch-actuator, Micro		Appelez-nous	-
8	215763500		Module-dispenser		Appelez-nous	-
10	215793600		Spring, Dispenser Door		Appelez-nous	-
11	215253300		Slide-selector Sw, (pc Board)				$ 30.80
12	215627201		Knob - Selector, White		Appelez-nous	-
14	215447400		Label-module Cover, White		Appelez-nous	-
15	215764500		Light Bulb/lamp		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215630900		Screw, Hex Head, 10 32 X 3/8		Appelez-nous	-
18	215760200		Spring		Appelez-nous	-
22	215763700		Gear		Appelez-nous	-
23	215447001		Drip Tray, White				$ 63.53
24	215918001		Actuator, White		Appelez-nous	-
26	215503203		Screw,hilo Phil Pn Hd,10 X 1/2   (Replaces: 215503200)			Immediately	$ 7.09
27	215254700		Cam-slide		Appelez-nous	-
28	215447101		Cover-module, White		Appelez-nous	-
29	215764300		Gear-clutch Bearing		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
31	215764200		Ring-retainer, Gear		Appelez-nous	-
33	215280800		Heater-disp Throat		Appelez-nous	-
34	215763600		Shaft-solenoid		Appelez-nous	-
35	215764400		Solenoid		Appelez-nous	-
36	215254400		Cover-pc Board		Appelez-nous	-
37	215763400		Guide-cam		Appelez-nous	-
38	215762200		Pc Board		Appelez-nous	-
39	215253900		Wire-ice Door		Appelez-nous	-
40	215764100		Crank		Appelez-nous	-
41	215917800		Spring-actuator				$ 10.03
42	215756000		Ball		Appelez-nous	-
43	215760300		Screw,4 X 3/8				$ 9.35
45	215762100		Screw, 4-24 X 3/8		Appelez-nous	-
46	215763800		Screw, 2 X 1/4		Appelez-nous	-
1A	5303204887		Clamp-water Tube, Nylon (non-illustrated)		Appelez-nous	-
38A	215630800		Washer, Ext Tooth Lock, Light Switch, (non-illustrated)		Appelez-nous	-
38B	215631000		Nut, Hex, Light Switch (non-illustrated)		Appelez-nous	-
38C	215763900		Cap-light Switch (non-illustrated)		Appelez-nous	-
