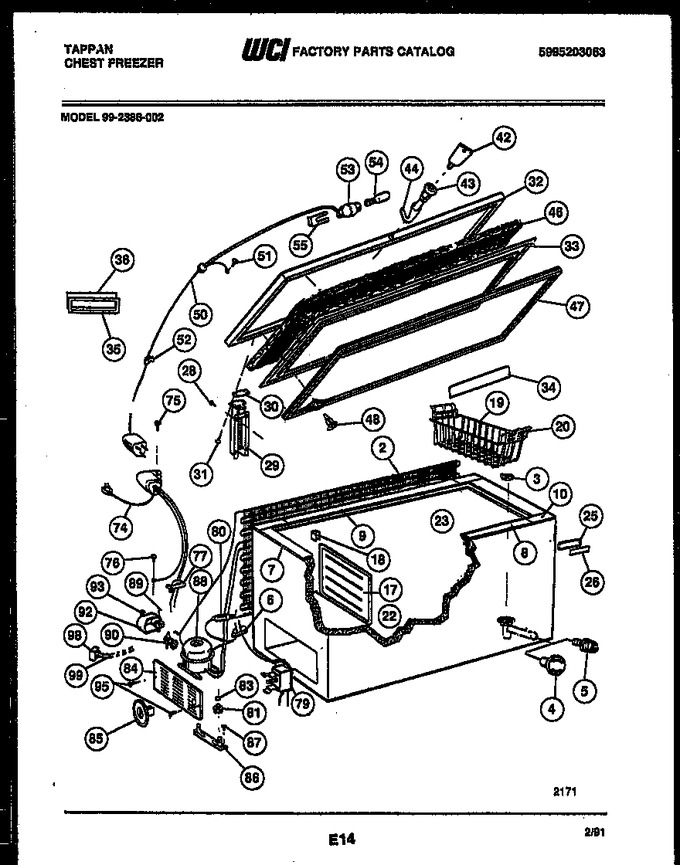

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 530300173 | External Condenser-(not Original Equipment-service Repla |
|
- | |||||
| 3 | 5306393887 | Plug Drain Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 06599967 | Grommet |
|
- | |||||
| 7 | 5303207301 | Breaker Ends |
|
- | |||||
| 8 | 5303925030 | Breaker Front |
|
- | |||||
| 9 | 5303925030 | Breaker Rear |
|
- | |||||
| 10 | 5303207302 | Breaker Corner |
|
- | |||||
| 17 | F129066 | Divider Drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider |
|
$ 19.80 | |||||
| 19 | 5308016768 | Basket (2) |
|
- | |||||
| 20 | F129037 | Handle Basket-blue (4) |
|
- | |||||
| 25 | 3204179 | Bezel Nameplate |
|
- | |||||
| 26 | 3204180 | Insert Nameplate |
|
- | |||||
| 28 | 5309950602 | Screw Hinge Base |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 3091421 | Spacer Hinge Wing |
|
- | |||||
| 31 | 5303091426 | Screw-hinge Wing |
|
- | |||||
| 32 | F129059-S | Lid Exterior-white |
|
- | |||||
| 33 | 3201585 | Panel Inner Lid-blue |
|
- | |||||
| 34 | 3204438 | Light Shield |
|
- | |||||
| 35 | 08037955 | Handle Recessed |
|
- | |||||
| 36 | 08009392 | Gasket Handle |
|
- | |||||
| 42 | 5398937402 | Key Lock |
|
- | |||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | F128167 | Gasket Lid-white |
|
- | |||||
| 48 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 50 | 08016807 | Wire Harness Lid |
|
- | |||||
| 51 | 216858001 | Screw-ground Wire (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 52 | 08016762 | Retainer Lead Wire |
|
- | |||||
| 53 | 5306599955 | Socket Light |
|
- | |||||
| 54 | 5303091423 | Light Bulb |
|
- | |||||
| 55 | 5306599968 | Retainer Socket |
|
- | |||||
| 74 | 5303212612 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires In Mach Comp |
|
- | |||||
| 79 | 5304496560 | Cold Control (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5300152474) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 5309950343 | Clip Compressor |
|
- | |||||
| 84 | 5303212647 | Access Panel-white |
|
- | |||||
| 85 | 5303270910 | Control Knob |
|
- | |||||
| 86 | 08016764 | Support Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916411 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5303206836 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303091425 | Harness Capacitor |
|
- | |||||
| 44A | 5303208488 | Latch Catch (non-illustrated) |
|
- | |||||
| 44B | 5303208481 | Latch Catch Support (non-illustrated) |
|
- |
