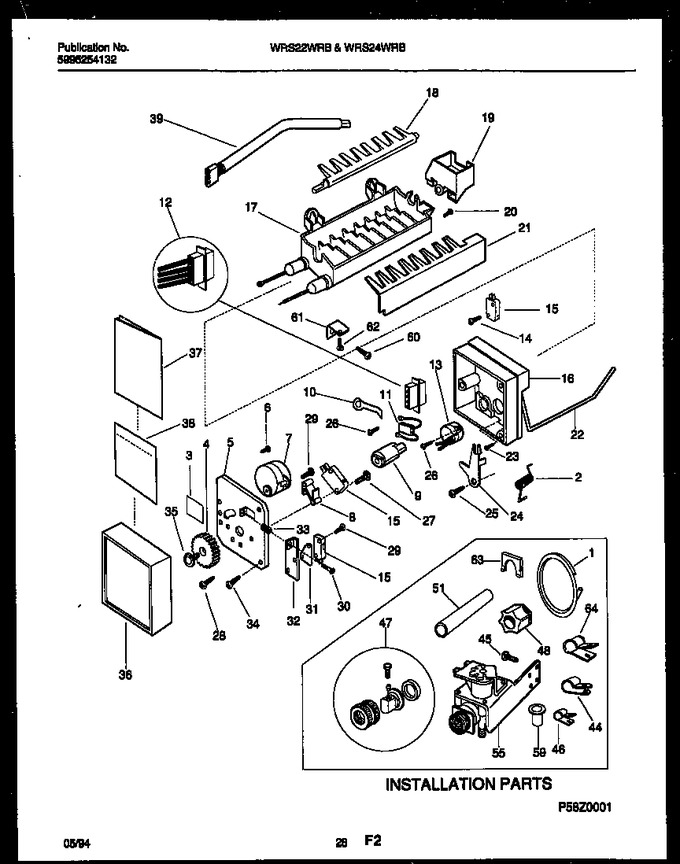

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
59	5303001191		Sleeve-tube Insert				$ 6.72
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
61	215168400		Bracket-im Mounting		Appelez-nous	-
62	215230500		Screw-im/mtg Brkt		Appelez-nous	-
63	5300154167		Clip-retainer,fill Tube		Appelez-nous	-
64	5304455846		Clamp-copper Tube, Steel   (Replaces: 5303001549)				$ 10.63
55A	215290100		Screw-solenoid Valve, Hx Hd-slot Wshr, 12-24 X 3/4 (non-illustrated)				$ 6.35
55B	5303015102		Cap-water Valve (non-illustrated)		Appelez-nous	-
