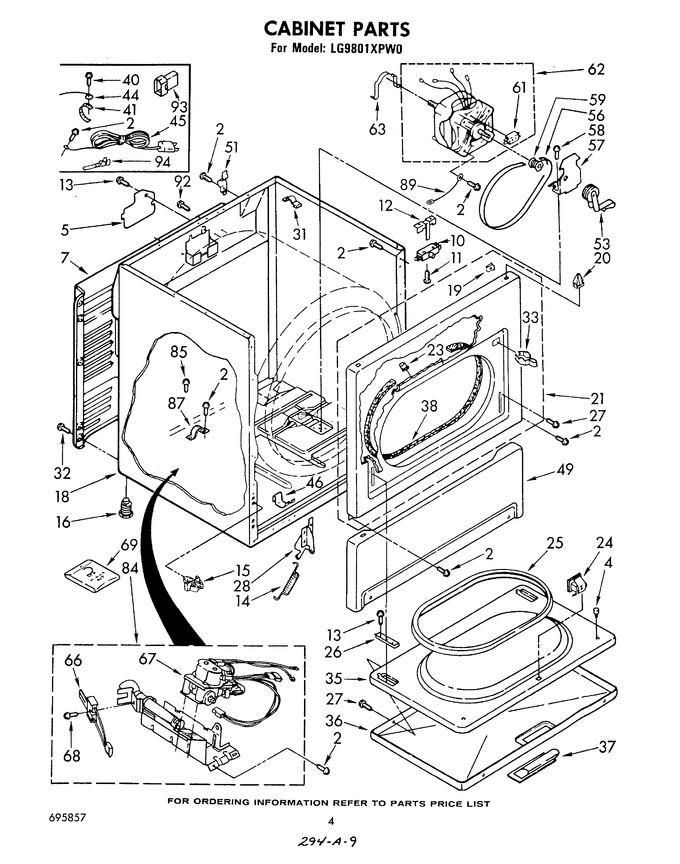

03 - Cabinet
04 - Bulkhead
05 - 694670 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 4 | 238614 | Bumper (2) |
|
$ 72.68 | |||||
| 5 | W11736322 | Cover, Block (Replaces: 690893) |
|
- | |||||
| 7 | 348364 | Panel, Rear |
|
- | |||||
| 10 | 691361 | Switch, Door |
|
- | |||||
| 11 | WP98129 | Screw, 6-20 X 1-3/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 12 | WP691581 | Door Switch Lever (Replaces: 295998) |
|
Immediately | $ 7.28 | ||||
| 13 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 14 | WPW10041960 | Spring, Door (2) (Replaces: 692495) |
|
Immediately | $ 36.60 | ||||
| 15 | 690625 | Clip, Toe Panel (2) |
|
- | |||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 688222) |
|
Immediately | $ 7.70 | ||||
| 18 | 694876 | Cabinet (toast) |
|
- | |||||
| 18 | 690845 | Cabinet (golden Harvest) |
|
- | |||||
| 18 | 694877 | Cabinet (platinum) |
|
- | |||||
| 18 | 690841 | Cabinet (white) |
|
- | |||||
| 18 | 690842 | Cabinet (almond) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 688904) |
|
Immediately | $ 11.41 | ||||
| 21 | 692436 | Upper Front Panel (almond) |
|
- | |||||
| 21 | 692439 | Upper Front Panel (golden Harvest) |
|
- | |||||
| 21 | 279740 | Upper Front Panel (white) (Replaces: 692435) |
|
$ 325.77 | |||||
| 21 | 692454 | Upper Front Panel (toast) |
|
- | |||||
| 21 | 692455 | Upper Front Panel (platinum) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 25 | W10906683 | Seal, Door (Replaces: 692494) |
|
$ 115.68 | |||||
| 26 | W11252547 | Clip, Hinge (2) (Replaces: 337189) |
|
$ 19.25 | |||||
| 27 | WP694091 | Screw, 6-18 X 1/2 (Replaces: 694091) |
|
$ 6.47 | |||||
| 28 | WP8066057 | Hinge, L.h. (Replaces: 692501) |
|
$ 86.53 | |||||
| 28 | WP8066056 | Hinge, R.h. (Replaces: 692498) |
|
Immediately | $ 88.70 | ||||
| 31 | WP98997 | Clip, Harness (2) (Replaces: 98997) |
|
$ 9.98 | |||||
| 32 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 33 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 35 | WP695737 | Door, Rear (toast) (Replaces: 695134) |
|
$ 229.10 | |||||
| 35 | WP695737 | Door, Rear (platinum) (Replaces: 695135) |
|
$ 229.10 | |||||
| 35 | WP695737 | Door, Rear (golden Harvest) (Replaces: 692328) |
|
$ 229.10 | |||||
| 35 | WP695737 | Door, Rear (white) (Replaces: 692324) |
|
$ 229.10 | |||||
| 35 | WP695737 | Door, Rear (almond) (Replaces: 692325) |
|
$ 229.10 | |||||
| 36 | 692319 | Door, Front (almond) |
|
- | |||||
| 36 | 692322 | Door, Front (golden Harvest) |
|
- | |||||
| 36 | 695130 | Door, Front (toast) |
|
- | |||||
| 36 | 695131 | Door, Front (platinum) |
|
- | |||||
| 36 | WP3393549 | Door, Front (white) (Replaces: 692318) |
|
$ 158.86 | |||||
| 37 | 695017 | Handle, Door (platinum) |
|
- | |||||
| 37 | 690269 | Handle, Door (golden Harvest) |
|
- | |||||
| 37 | 695016 | Handle, Door (toast) |
|
- | |||||
| 37 | 690266 | Handle, Door (almond) |
|
- | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 690265) |
|
$ 70.10 | |||||
| 38 | W11035878 | Seal & Bearing Assembly (Replaces: 692493) |
|
Immediately | $ 70.90 | ||||
| 40 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 41 | 22965 | Strap, Ground |
|
- | |||||
| 44 | 364089 | Wire, Ground |
|
- | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 108.53 | |||||
| 46 | WP297092 | Clip, Hinge (2) (Replaces: 297092) |
|
Immediately | $ 7.42 | ||||
| 49 | 692427 | Panel, Toe (white) |
|
- | |||||
| 49 | 695142 | Panel, Toe (toast) |
|
- | |||||
| 49 | 692431 | Panel, Toe (golden Harvest) |
|
- | |||||
| 49 | 692428 | Panel, Toe (almond) |
|
- | |||||
| 49 | 695143 | Panel, Toe (platinum) |
|
- | |||||
| 51 | WP8066217 | Hinge Top (Replaces: 238088) |
|
$ 7.04 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 349533) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 59 | W10837625 | Pulley, Motor (Replaces: 694872) |
|
Immediately | $ 10.94 | ||||
| 61 | 279827 | Switch, Motor Start (Replaces: 337351) |
|
Immediately | $ 172.76 | ||||
| 62 | 279827 | Motor, 60 Hz. (Replaces: 695075) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 63 | WP660658 | Clamp, Motor (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 66 | 279311 | Ignitor (alt.) (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 66 | 279311 | Ignitor (Replaces: 660991) |
|
Immediately | $ 71.01 | ||||
| 67 | 279923 | Valve, Gas (complete) 60 Hz. (Replaces: 694054) |
|
Immediately | $ 257.43 | ||||
| 68 | WPW10366705 | Lock Screw & Washer (Replaces: 686953) |
|
$ 6.75 | |||||
| 69 | 49572A | Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg) (Replaces: 694572) |
|
Immediately | $ 32.57 | ||||
| 69 | 279243 | Kit, Conversion (type 1 To Type 3) |
|
- | |||||
| 84 | 694670 | Burner Assembly, 60 Hz. (alternate) (refer To Pages 8 & 9 For Further Burner Breakdown) |
|
- | |||||
| 85 | 343826 | Screw, Burner Mounting |
|
- | |||||
| 87 | 341029 | Clamp, Pipe (rear) |
|
- | |||||
| 89 | 690236 | Wire, Ground |
|
- | |||||
| 92 | WP681414 | Screw, 10-32 X 1/2 (grounding) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 93 | 353425 | Receptacle, 3-way (use W/94614 Terminal) |
|
- | |||||
| 93 | 353424 | Plug, 3-way (use W/94613 Terminal) |
|
$ 18.95 | |||||
| 94 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 94 | 94613 | Terminal, (male) |
|
- |
