SELECT A DIAGRAM

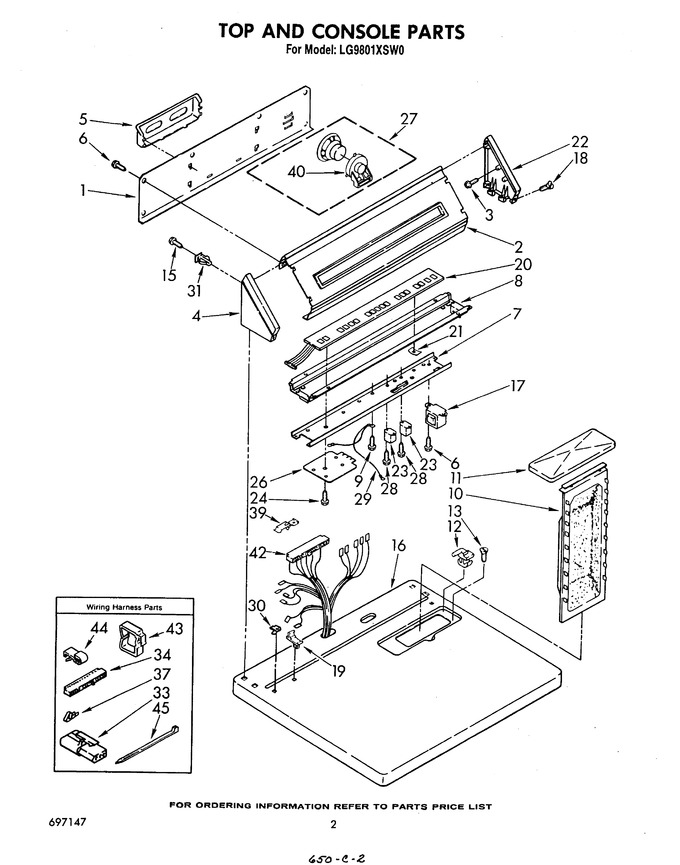

02 - Top And Console , Literature And Optional


03 - Cabinet


04 - Bulkhead


05 - 694670 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	696727		Panel, Rear Console		Appelez-nous	-
2	696700		Panel, Control		Appelez-nous	-
3	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
4	63789		Cap, End (l.h.)		Appelez-nous	-
5	63020		Rack, Literature				$ 30.32
6	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
7	387861		Bracket, Control		Appelez-nous	-
8	387856		Console, Bracket		Appelez-nous	-
9	WP681414		Screw, Ground   (Replaces: 690989)			Immediately	$ 7.07
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 33.49
11	695023		Cover, Lint Screen (platinum)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
11	695022		Cover, Lint Screen (toast)		Appelez-nous	-
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 339230)				$ 6.95
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 339229)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
15	WP489069		Screw, Hex Head   (Replaces: 693994)			Immediately	$ 7.07
16	695511		Top (platinum)		Appelez-nous	-
16	695509		Top (golden Harvest)		Appelez-nous	-
16	695510		Top (toast)		Appelez-nous	-
16	695507		Top (white)		Appelez-nous	-
16	695508		Top (almond)		Appelez-nous	-
17	60996		Transformer		Appelez-nous	-
18	WP388326		Screw, 8-18 (2)   (Replaces: 64211)				$ 7.30
19	358472		Stop, Push-in (2)		Appelez-nous	-
20	3407001		Module, Touch		Appelez-nous	-
21	445189		Nut, Push-on		Appelez-nous	-
22	63795		Cap, End. (r.h.)				$ 14.10
23	696819		Power Relay (2)		Appelez-nous	-
24	302252		Screw, 6-32 X 1/4		Appelez-nous	-
26	772563		Microcomputer Assembly		Appelez-nous	-
27	3388227		Speaker & Housing		Appelez-nous	-
28	339583		Screw, 6-20 X 1/2		Appelez-nous	-
29	690853		Wire, Ground		Appelez-nous	-
30	358473		Nut, Push-in (2)				$ 5.84
31	689559		Nut, Push-on (4)		Appelez-nous	-
33	691707		Receptacle, Latching (3-way)		Appelez-nous	-
34	60278		Connector, 15 Circuit (uses 60279 Terminal)				$ 231.17
37	60279		Terminal		Appelez-nous	-
39	357144		Clip, Wire (tech Sheet/top)		Appelez-nous	-
40	359188		Housing, Speaker		Appelez-nous	-
42	3387196		Harness, Wiring		Appelez-nous	-
43	688412		Clip, Harness Retainer (bulkhead Rear Area)		Appelez-nous	-
44	689180		Clip, Harness Retainer (door Switch)		Appelez-nous	-
45	WPW10339879		Tie, Cable (wiring Harness Console Area)   (Replaces: 685963)				$ 7.11
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT693849		Guide, Dryer		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT677967		Dishwasher		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	350941		Leveler (thinner)		Appelez-nous	-
	LIT3387071		Use & Care Guide		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	LIT697616		Tech Sheet (service Information)		Appelez-nous	-
	LIT696233		Instructions, Installation		Appelez-nous	-
	677821		Compactor   (Replaces: LIT677821)				$ 31.51
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	LIT697147		List, Parts		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
