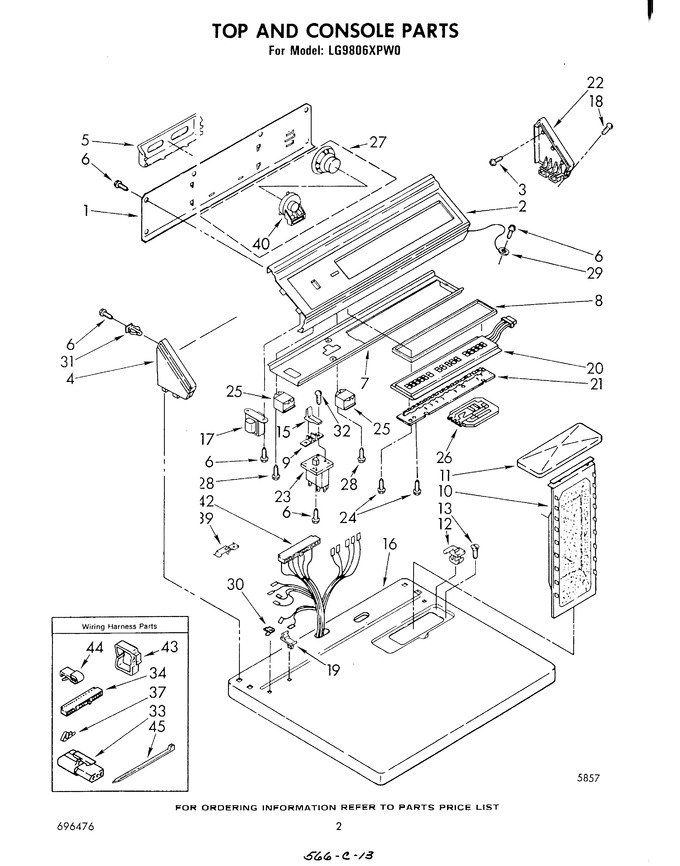

02 - Top And Console , Literature And Optional
03 - Cabinet
04 - Bulkhead
05 - 694670 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 696198 | Panel, Rear Console |
|
- | |||||
| 2 | 386795 | Panel, Control |
|
- | |||||
| 3 | 355326 | Screw, 13/16 X 5/8 (4) |
|
- | |||||
| 4 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 5 | 63020 | Rack, Literature |
|
$ 30.32 | |||||
| 6 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 7 | 696004 | Bracket, Control |
|
- | |||||
| 8 | 359787 | Trim, Frame |
|
- | |||||
| 9 | 358563 | Pivot, Lever |
|
- | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 33.49 | ||||
| 11 | 689310 | Cover, Lint Screen (almond) |
|
- | |||||
| 11 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 11 | 689313 | Cover, Lint Screen (golden Harvest) |
|
- | |||||
| 11 | 695022 | Cover, Lint Screen (toast) |
|
- | |||||
| 11 | 695023 | Cover, Lint Screen (platinum) |
|
- | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 339229) |
|
$ 6.95 | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 339230) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 15 | 358564 | Lever |
|
- | |||||
| 16 | 695507 | Top (white) |
|
- | |||||
| 16 | 695509 | Top (golden Harvest) |
|
- | |||||
| 16 | 695511 | Top (platinum) |
|
- | |||||
| 16 | 695510 | Top (toast) |
|
- | |||||
| 16 | 695508 | Top (almond) |
|
- | |||||
| 17 | 60996 | Transformer |
|
- | |||||
| 18 | WP388326 | Screw, 8-18 (2) (Replaces: 64211) |
|
$ 7.30 | |||||
| 19 | 358472 | Stop, Push-in (2) |
|
- | |||||
| 20 | 693263 | Module, Touch |
|
- | |||||
| 21 | 61292 | Display Assembly |
|
- | |||||
| 22 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 23 | 691359 | Relay, Start-to-stop |
|
- | |||||
| 24 | 690756 | Screw, 8-18 X 1/2 (6) |
|
- | |||||
| 25 | 693891 | Power Relay (2) |
|
- | |||||
| 26 | 61203 | Microcomputer Assembly |
|
- | |||||
| 27 | 359201 | Speaker & Housing |
|
- | |||||
| 28 | 339583 | Screw, 6-20 X 1/2 |
|
- | |||||
| 29 | 690853 | Wire, Ground |
|
- | |||||
| 30 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 31 | 689559 | Nut, Push-on (4) |
|
- | |||||
| 32 | WPW10068250 | Screw (Replaces: 358644) |
|
$ 3.66 | |||||
| 33 | 691707 | Receptacle, Latching (3-way) |
|
- | |||||
| 34 | 60278 | Connector, 15 Circuit (uses 60279 Terminal) |
|
$ 231.17 | |||||
| 37 | 60279 | Terminal |
|
- | |||||
| 39 | 357144 | Clip, Wire (tech Sheet/top) |
|
- | |||||
| 40 | 359188 | Housing, Speaker |
|
- | |||||
| 42 | 695381 | Harness, Wiring |
|
- | |||||
| 43 | 688412 | Clip, Harness Retainer (bulkhead Rear Area) |
|
- | |||||
| 44 | 689180 | Clip, Harness Retainer (door Switch) |
|
- | |||||
| 45 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 45 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 45 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 45 | WPW10339879 | Tie, Cable (wiring Harness Console Area) (Replaces: 685963) |
|
$ 7.11 | |||||
| 45 | LIT694125 | Tech Sheet (service Information) |
|
- | |||||
| 45 | LIT691455 | Label, Operating Instruction |
|
- | |||||
| 45 | LIT696211 | Use & Care Guide |
|
- | |||||
| 45 | LIT693849 | Guide, Dryer |
|
- | |||||
| 45 | LIT696476 | List, Parts |
|
- | |||||
| 45 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 45 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 45 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 45 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 45 | 261890 | Golden Harvest |
|
- | |||||
| 45 | 285365 | Toast |
|
- | |||||
| 45 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 45 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 45 | 350941 | Leveler (thinner) |
|
- | |||||
| 45 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 45 | 978883 | Almond (uncut) |
|
- | |||||
| 45 | 261891 | Golden Harvest (uncut) |
|
- | |||||
| 45 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 45 | 285368 | Platinum (uncut) |
|
- | |||||
