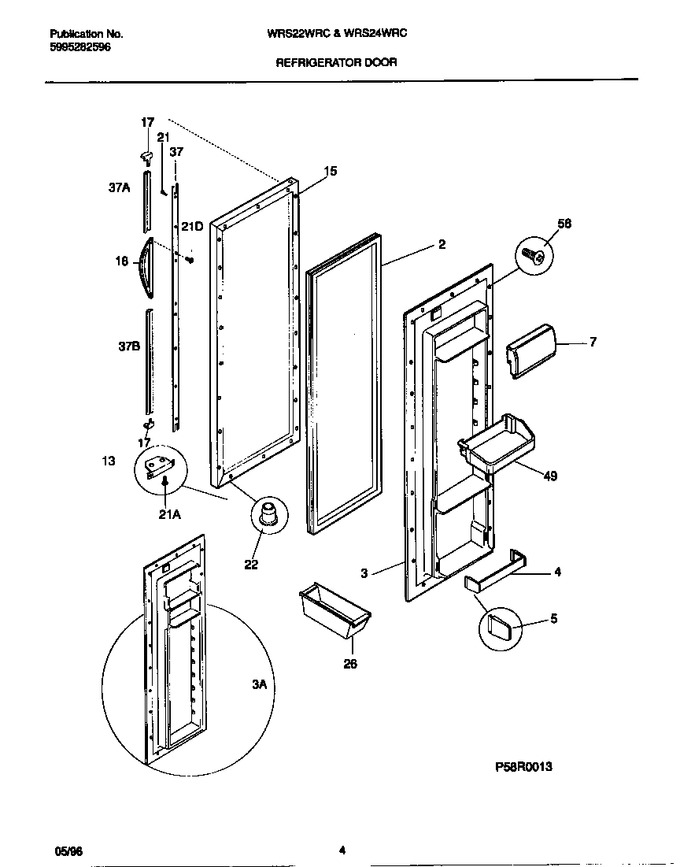

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	5303296572		Panel, Inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door   (Replaces: 218027058)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215029912		Door-dairy		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917554		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215422000		Handle End, Chrome		Appelez-nous	-
18	218436901		Handle-door, White		Appelez-nous	-
21	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215399207		Trim-handle, 31.68``, White, Lower		Appelez-nous	-
37	215399208		Trim-handle, 16.06``, White, Upper		Appelez-nous	-
37	215421701		Trim-handle, 61.12``, Black/silver		Appelez-nous	-
49	215003414		Bin-door		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
*45563	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
*45564	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
