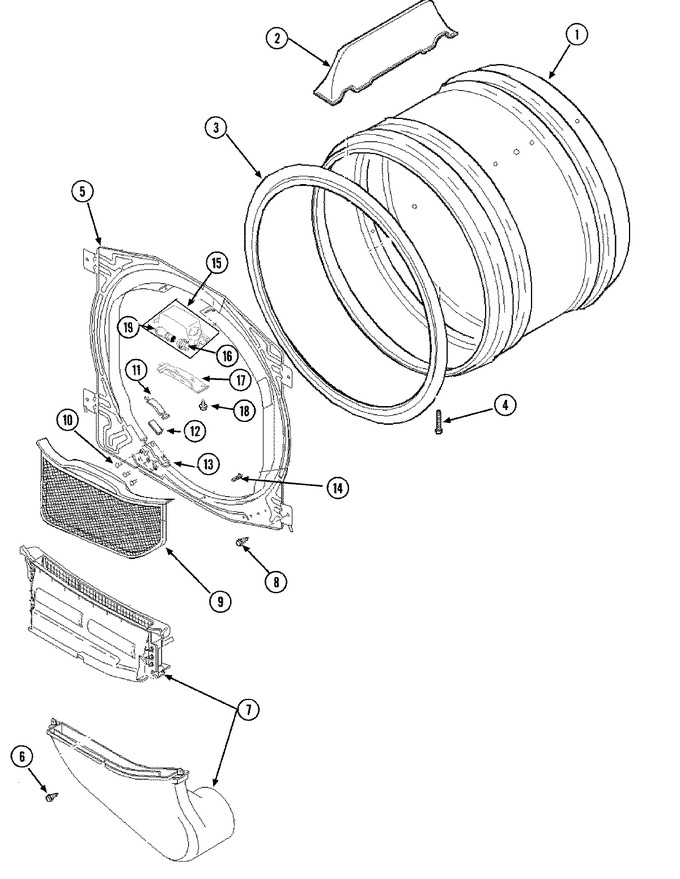

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	504467WP		Cylinder Assembly (painted)	10	Appelez-nous	-
2	503703		Baffle, Cylinder (wht)	10			$ 28.73
3	WP37001132		Seal, Cylinder   (Replaces: 501801)	10		Immediately	$ 54.31
4	Y62588		Screw, 10bt-12 X 1 Tap	10	Appelez-nous	-
5	503616WP		Assy, Frt Bulkhead (white)	10			$ 362.51
6	D501285		Screw, No.12 X 9/16   (Replaces: 501285)	10			$ 2.76
7	40124501		Assy,uppr/lwr Air Duct	10	Appelez-nous	-
8	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 6.95
9	WP37001142		Filter, Lint (wht)   (Replaces: 40124401)	10		Immediately	$ 112.23
10	WP489128		Screw, No.8-32x3/8`` Hex   (Replaces: 37001031)	10			$ 9.79
11	40116501		Glide,cylinder(tan)	10	Appelez-nous	-
12	WP500121		Pad, Felt-coin   (Replaces: 500121)	10		Immediately	$ 7.75
13	WP37001036		Bracket, Cylinder Glide   (Replaces: 37001036)	10		Immediately	$ 51.65
14	D500226		Screw, 8b-16x5/8 Tap   (Replaces: 500226)	10			$ 3.88
15	D512108		Light Assembly   (Replaces: Y504452)	10			$ 31.43
16	504458		Holder, Lamp	10	Appelez-nous	-
17	40094301		Lens, Light	10			$ 5.70
18	D505295		Screw, No.8ab-16x3/4 Ph   (Replaces: 505295)	10			$ 1.47
19	W10857122		Light, Cylinder   (Replaces: Y60954)	10			$ 12.45
