01 - Cabinet & Base


02 - Control Panel


03 - Door & Front, Access & Top Panel


04 - Front Bulkhead, Air Duct & Drum


05 - Gas Valve & Igniter


06 - Motor, Fan & Belt


07 - Rear Bulkhead, Roller & Air Duct (gas)


08 - Supplemental Information

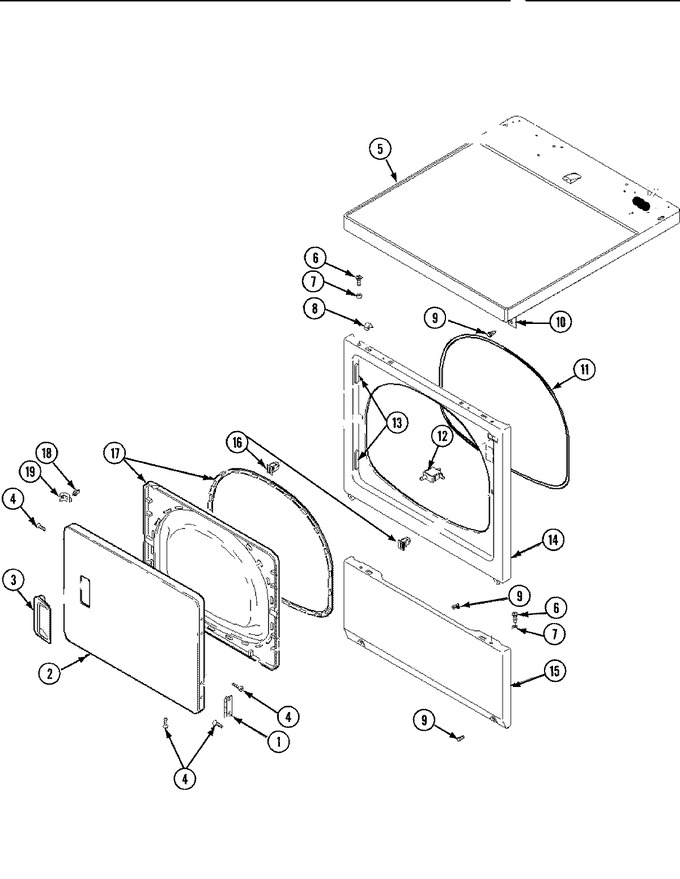

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y503676		Hinge, Door & Top	10			$ 40.54
2	37001034		Door, Dryer (bsq)	10	Appelez-nous	-
3	37001047		Handle, Door (bsq)	10	Appelez-nous	-
4	37001030		Screw, No.8ab-16x3/4 Fh	10	Appelez-nous	-
5	56128		Pad, Bumper   (Replaces: Y56128)	10			$ 6.95
5	37001033		Panel, Top (bsq)	10	Appelez-nous	-
6	39733		Screw, Tapping   (Replaces: 32671)	10			$ 6.95
7	56079		Locator, Panel   (Replaces: 505187)	10		Immediately	$ 6.95
8	WP22001650		Clip, Spring   (Replaces: 56080)	10		Immediately	$ 7.34
9	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)	10	Appelez-nous	-
10	40130801		Bracket,top Mount	10	Appelez-nous	-
11	504005		Seal, Front Panel	10			$ 49.57
12	W10169313		Switch, Door   (Replaces: Y504570)	10		Immediately	$ 29.18
13	503126		Plug, Hinge Hole	10	Appelez-nous	-
14	503656CP		Panel, Front (bsq)	10	Appelez-nous	-
15	40045301CP		Panel, Access (bsq)	10	Appelez-nous	-
16	LA-1003		Catch, Door   (Replaces: 54660)	10		Immediately	$ 24.51
17	37001028		Seal & Liner, Assy(inner Door)	10			$ 130.17
18	LA-1003		Strike, Door (metal)   (Replaces: 500039)	10		Immediately	$ 24.51
19	40116201		Bracket,door Strike	10			$ 5.51
