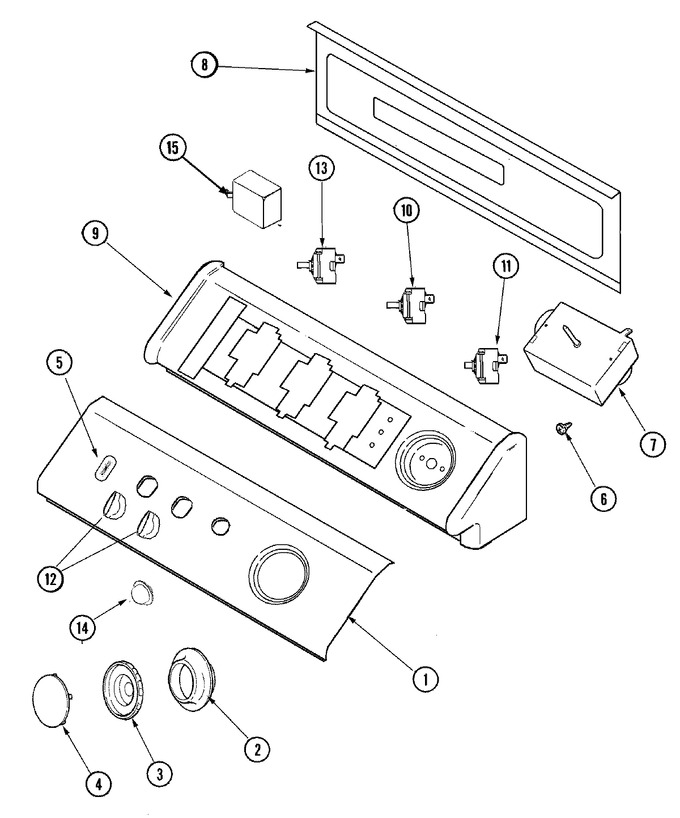

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	37001037		Graphic Control Pnl/facia/wht	10	Appelez-nous	-
1	Y22002339		Screw	10	Appelez-nous	-
2	WP33001621		Skirt, Timer Dial (wht)   (Replaces: 33001621)	10		Immediately	$ 23.18
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10			$ 26.38
4	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
5	33002389		Dryness Display Control (wht)	10			$ 81.10
6	WP489128		Screw, No.8-32x3/8`` Hex   (Replaces: 37001031)	10			$ 9.79
7	33002689		Timer, Mallory Electronic Dry	10	Appelez-nous	-
8	WP489128		Screw   (Replaces: 216423)	10			$ 9.79
8	22002529		Console Back Panel	10	Appelez-nous	-
9	33002286		Console (wht)	10	Appelez-nous	-
10	22001794		Switch, Rotary (2 Pos)	10			$ 24.91
11	33001861		Switch, Push To Start (wht)	10	Appelez-nous	-
12	WP22001663		Knob, Selector Switch (wht)   (Replaces: 22001663)	10		Immediately	$ 53.16
13	33001641		Switch, Temperature (gas)	10	Appelez-nous	-
14	33001619		Button, Push To Start (wht)	10	Appelez-nous	-
15	33001623		Buzzer, Non-adjustable	10			$ 55.84
15	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)	10		Immediately	$ 7.04

    View Diagram in Separate Window       Print Part List
