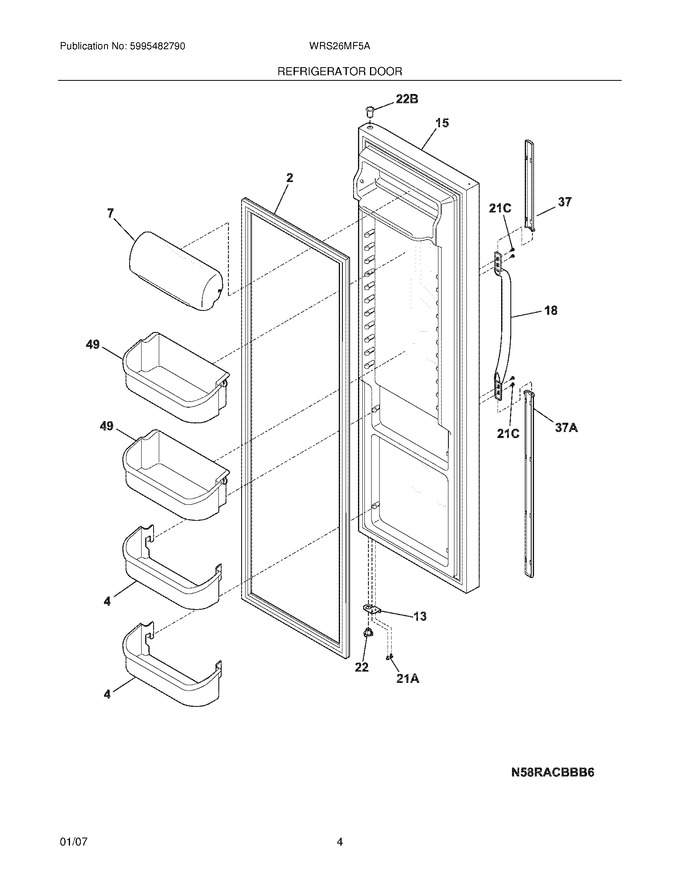

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323007		Bin-door,pseudo ,bottom		Appelez-nous	-
7	240326208		Door-dairy,clear		Appelez-nous	-
13	240581901		Door Stop,white ,refr				$ 43.95
15	240451901		Door-refr,white ,complete Assy				$ 345.50
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	218811618		Trim-handle,white ,upper				$ 66.89
49	240356409		Bin-door,gallon		Appelez-nous	-
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	218811615		Trim-handle,white ,lower				$ 66.20
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241674801)				$ 95.90
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60

    View Diagram in Separate Window       Print Part List
