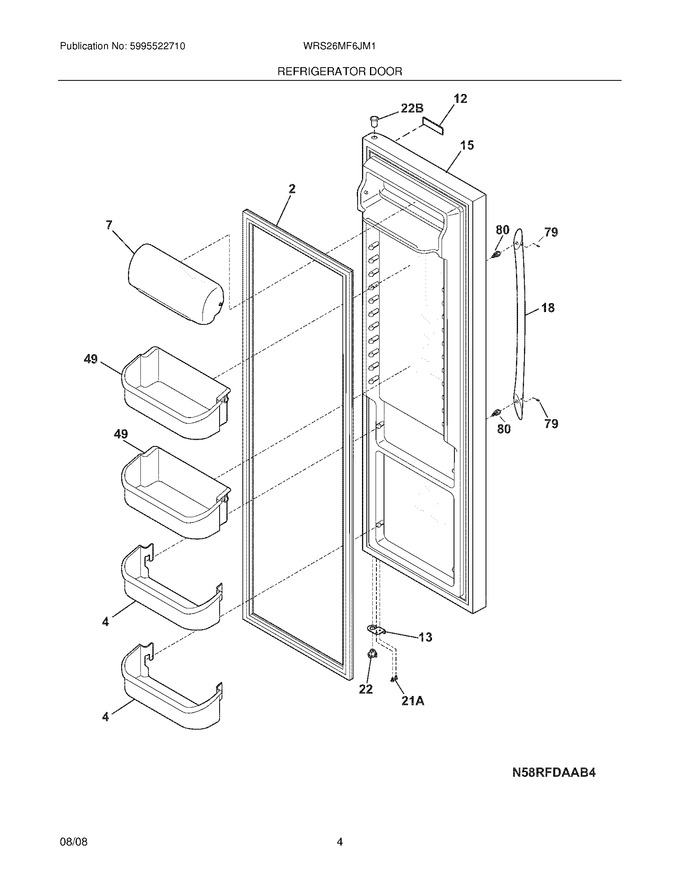

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)				$ 95.90
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326213		Door-dairy		Appelez-nous	-
12	240578101		Label-nameplate		Appelez-nous	-
13	240581901		Door Stop,white ,refr				$ 43.95
15	241837241		Door-refr,silver Mist ,complete Assy		Appelez-nous	-
18	297065300		Handle-door				$ 218.91
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
49	240356402		Bin-door,gallon			Immediately	$ 106.83
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
NI	241780402		Liner,bin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
