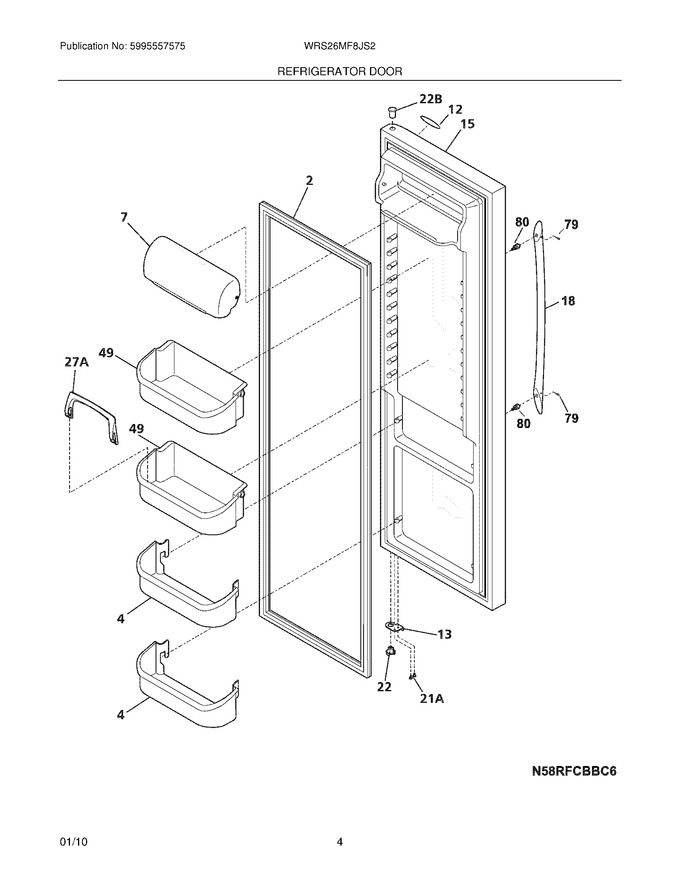

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786013 | Gasket-refr Door,white ,magnetic (Replaces: 241786001) |
|
$ 95.90 | |||||
| 4 | 240323002 | Bin-door,pseudo ,clear ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326213 | Door-dairy |
|
- | |||||
| 12 | 240578101 | Label-nameplate |
|
- | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 60.25 | |||||
| 15 | 241837244 | Door-refr,stainless ,complete Assy |
|
- | |||||
| 18 | 297065300 | Handle-door |
|
$ 218.91 | |||||
| 22 | 242015302 | Bearing-hinge(ref),black ,closer |
|
$ 10.62 | |||||
| 49 | 240356402 | Bin-door,gallon (Replaces: 241808205) |
|
Immediately | $ 106.83 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 19.13 | |||||
| NI | 241780402 | Liner,bin |
|
- |
