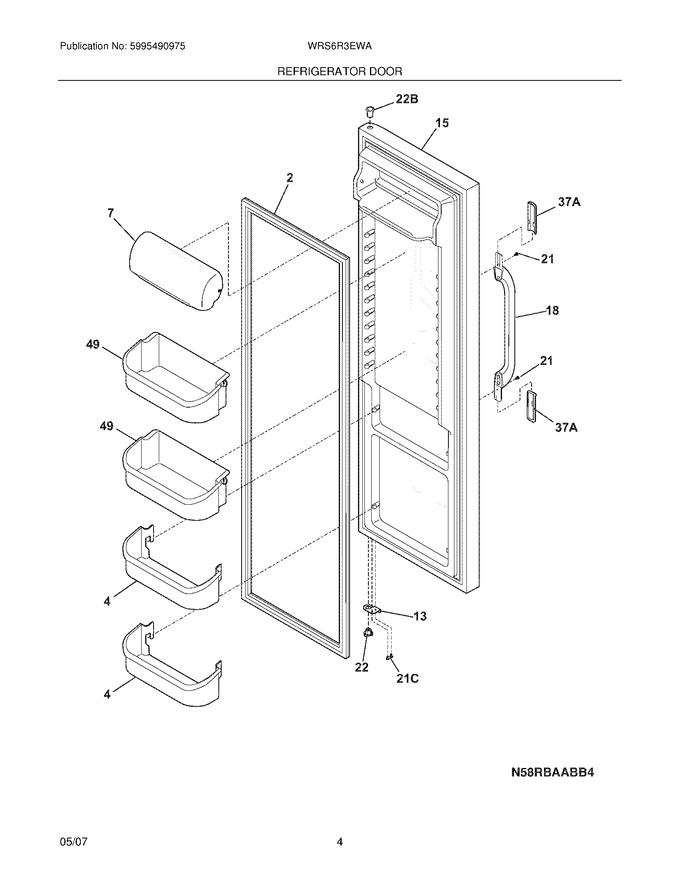

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	240581901		Door Stop,white ,refr				$ 43.95
15	241534552		Door-refr,white ,complete Assy		Appelez-nous	-
18	218668401		Handle-door, White				$ 74.97
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
49	240356401		Bin-door,gallon			Immediately	$ 85.64
21C	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	218811648		Trim-handle,4.97`` ,white ,w/lock				$ 52.31
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241674801)				$ 95.90

    View Diagram in Separate Window       Print Part List
