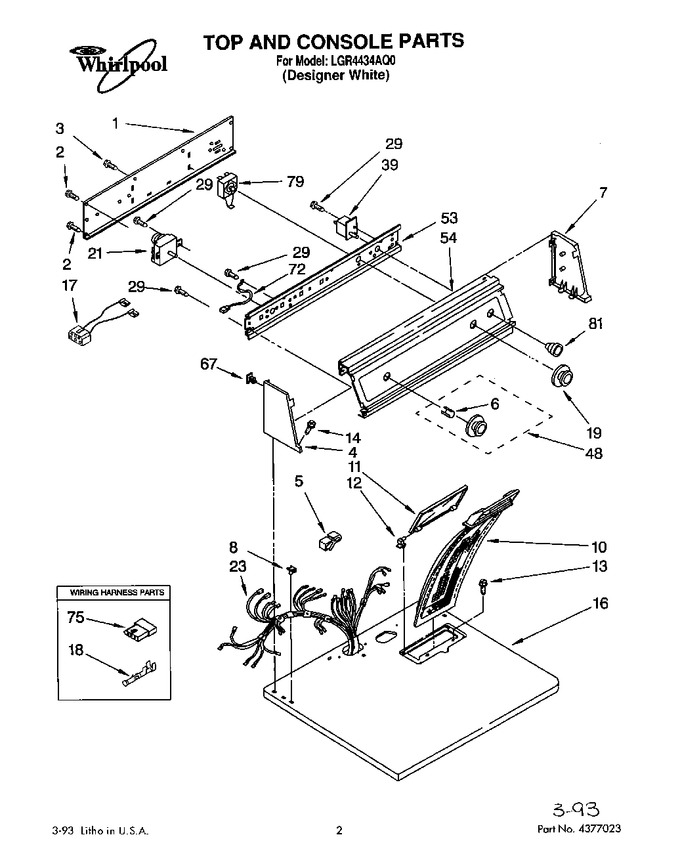

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3397545		Panel, Rear Console		Appelez-nous	-
2	WP489069		Screw, Hex Washer Head   (Replaces: 693994)			Immediately	$ 7.07
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.47
4	3358531		Cap, End (l.h.)		Appelez-nous	-
5	689180		Clip, Retainer		Appelez-nous	-
6	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.03
7	3358516		Cap, End (r.h.)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 37.72
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 339229)				$ 6.95
12	WPW10044480		Hinge, L.h.   (Replaces: 339230)				$ 6.95
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
14	WP388326		Screw, Console   (Replaces: 3353145)				$ 7.30
16	3396022		Top (white)		Appelez-nous	-
17	8283286		Wire Jumper Assembly   (Replaces: 3396028)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
19	WP3957796		Knob, Temperature Selector   (Replaces: 3358435)			Immediately	$ 49.35
21	3396215		Timer Assembly, 60 Hz.				$ 180.59
23	3396220		Harness, Wiring		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 6.75
39	660936		Switch, Push-to-start		Appelez-nous	-
39	692021		(alt.)		Appelez-nous	-
48	WP3957752		Timer Knob & Dial   (Replaces: 3396146)				$ 48.56
53	3396293		Bracket, Control		Appelez-nous	-
54	3397184		Panel, Control		Appelez-nous	-
67	689559		Nut, Push-on (4)		Appelez-nous	-
72	690853		Wire, Ground		Appelez-nous	-
75	691707		Receptacle, Latching (3-way) (uses Terminal 94614)		Appelez-nous	-
79	3354281		Switch, Temperature Selector		Appelez-nous	-
81	WP3957800		Knob, Push To Start   (Replaces: 3396161)				$ 45.36
	LIT3395325		Instructions, Installation		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT4377023		List, Service Parts		Appelez-nous	-
	LIT3396296		Use & Care Guide		Appelez-nous	-
