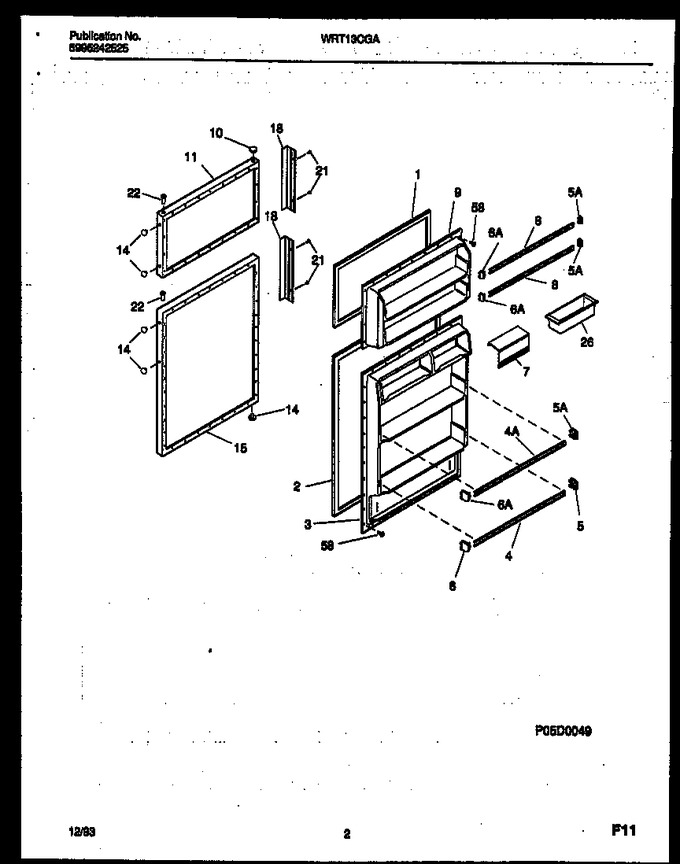

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket-frzr Door, Magnetic		Appelez-nous	-
2	5303270902		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5303271483		Panel-inner Door, Refr				$ 343.77
4	215366002		Rack-door, Wide   (Replaces: 5303280367)			Immediately	$ 65.83
5	3206150		Support, Door Rack, Rh				$ 12.58
6	3206151		Support-door Rack, Lh		Appelez-nous	-
7	5303291495		Door-dairy		Appelez-nous	-
8	5303280368		Rack-door, Narrow, (2)		Appelez-nous	-
9	5303271486		Panel-inner Door, Frzr				$ 312.17
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917131		Panel - Frzr Door, Almond, W / Insulation		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917213		Panel-refr Door, Almond		Appelez-nous	-
18	215164904		Handle - Door, 8`` Long, Black Vinyl		Appelez-nous	-
21	5308013645		Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*83259	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
4A	5303280366		Rack-door, Narrow		Appelez-nous	-
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93

    View Diagram in Separate Window       Print Part List
