New Model Search:

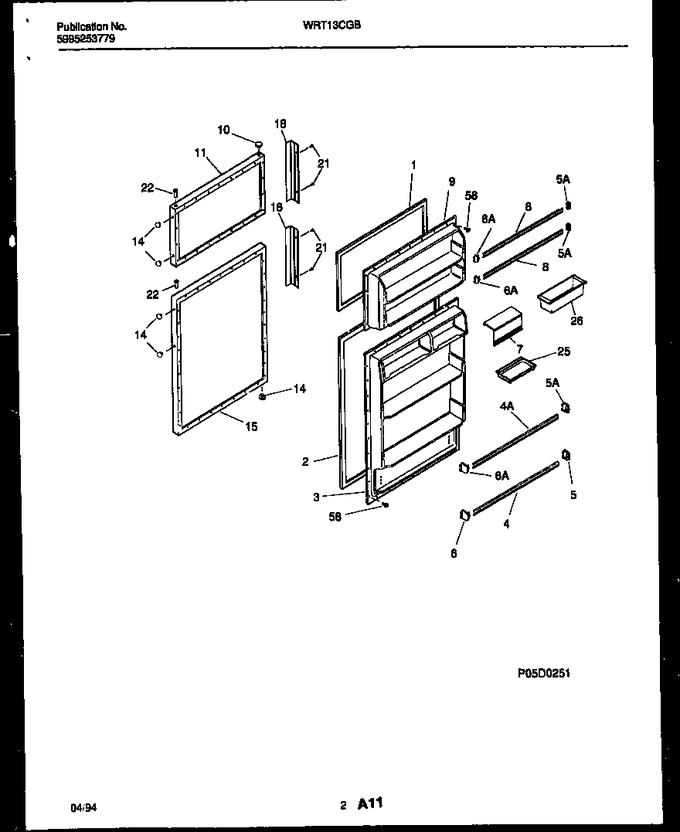

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608961 | Gasket-frzr Door, Brown, Magnetic |
|
- | |||||
| 2 | 21573464 | Gasket-refr Door, Brown, Magnetic |
|
- | |||||
| 3 | 5303271483 | Panel-inner Door, Refr |
|
$ 343.77 | |||||
| 4 | 215366002 | Rack-door, 23.00`` X 1.62`` (Replaces: 5303280367) |
|
Immediately | $ 65.83 | ||||
| 5 | 3206150 | Support-door Rack, Extends 1/81``, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Extends 1.81``, Lh |
|
- | |||||
| 7 | 5303291495 | Door-dairy |
|
- | |||||
| 8 | 5303280622 | Rack-door, 22.59`` X 1.12`` |
|
- | |||||
| 9 | 5303271486 | Panel-inner Door, Frzr |
|
$ 312.17 | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917131 | Panel - Frzr Door, Almond, W / Insulation |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917213 | Panel-refr Door, Almond, W/insulation |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter, White |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *95464 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 4A | 5303280366 | Rack-door, 23.16`` X 1.12`` |
|
- | |||||
| 5A | 3206165 | Support-door Rack, Extends 1.06``, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206166 | Support-door Rack, Extends 1.06``, Lh |
|
Immediately | $ 9.93 |
