SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet

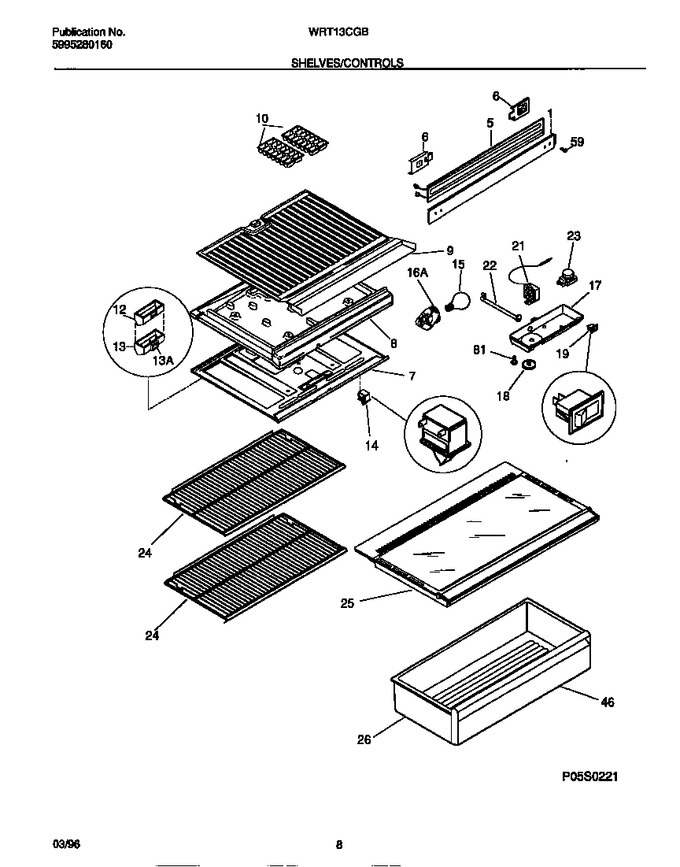

04 - Shelves/controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430701		Mullion, White		Appelez-nous	-
1	218660100		Condenser		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 218541000)			Immediately	$ 31.67
5	5303276174		Harness-wiring, Control/divider		Appelez-nous	-
5	218271301		Heater - Mullion		Appelez-nous	-
6	215257003		Harness-wiring, Compressor		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	5316254901		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
9	5303270920		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
13	5303200590		Extension, Air Deflector, For 2-pc Cover		Appelez-nous	-
13	218631001		Cover-air Deflector				$ 55.19
13	218691900		Heat Exchanger, Suction Line		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
14	5308009754		Heater-defrost				$ 157.76
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
15	5308009756		Evaporator		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5316651102		Insulator-evap, Plastic				$ 53.04
18	5303311079		Knob-temp Control		Appelez-nous	-
18	5308013648		Insulation Block, Rh		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	5303270923		Housing-temp Sensor, Plastic		Appelez-nous	-
22	3206126		Plate-compr Mtg, With Rail		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor (not Illustrated)				$ 60.96
23	218254500		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5303283125		Shelf-sliding, Wire, Refr Section		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5303270897		Cover-crisper Pan				$ 275.73
25	5308003596		Clip - Compressor Mtg				$ 6.62
26	5303209937		Pan-crisper, Full-width				$ 231.16
26	215372500		Pan, Defrost Drain		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	218374502		Compressor, R134a, W/o Electricals		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
31	5303299560		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
46	5303209521		Front-crisper Pan, Full-width		Appelez-nous	-
55	5304464438		Capacitor-run   (Replaces: 216236300)			Immediately	$ 35.38
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*10244	5303917618		Hot Tube Repair Kit, Service		Appelez-nous	-
12A	218630800		Deflector-air		Appelez-nous	-
12B	5303001449		Seal-air Deflector, (2) (not Illustrated)				$ 2.12
17A	5303307349		Control Box		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
19A	5303001198		Tube-rubber		Appelez-nous	-
19B	5303007287		Insulation Plug, Rh		Appelez-nous	-
21A	5303305486		Control-temperature				$ 122.43
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
2A	5308000296		Bracket,condenser Mtg ,(4)				$ 30.20
2B	5308009617		Washer, Ext Tooth Lock, No. 10 (not Illustrated)		Appelez-nous	-
45A	5300141713		Screw-clamp Mtg, Hex Washer Head, 8-32 X 5/8, Special		Appelez-nous	-
45B	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
7A	218597300		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	5303270921		Divider, Styrofoam		Appelez-nous	-
8B	5303276174		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-
