SELECT A DIAGRAM

01 - Cover

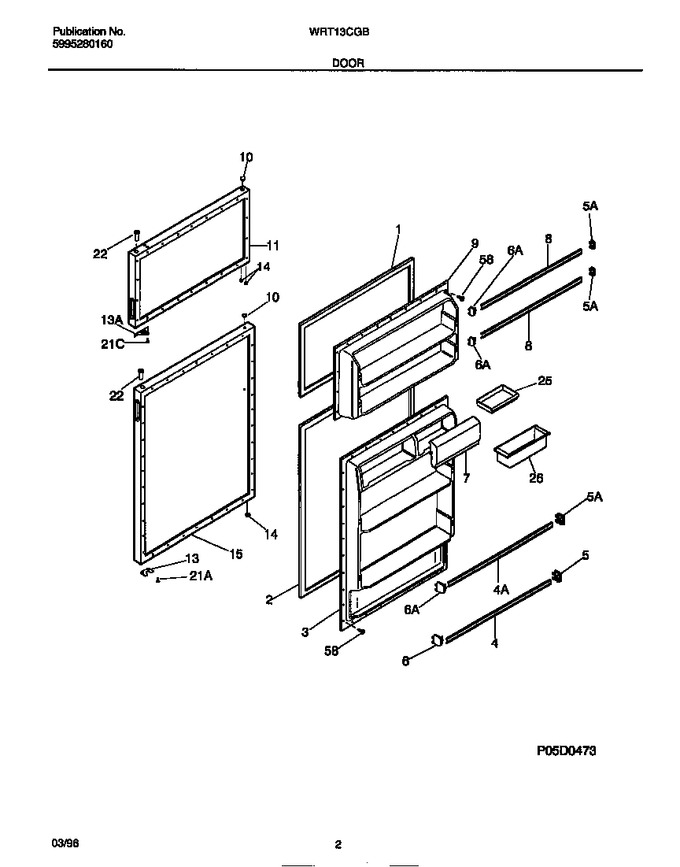

02 - Door


03 - Cabinet


04 - Shelves/controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	5303271473		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303271483		Panel-inner Door, Refr				$ 343.77
4	5303280366		Rack-door, 23.16`` X 1.12``		Appelez-nous	-
4	215366002		Rack-door, 23.00`` X 1.62``   (Replaces: 5303280367)			Immediately	$ 65.83
5	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
8	5303280622		Rack-door, 22.59`` X 1.12``		Appelez-nous	-
9	5303271486		Panel-inner Door, Frzr				$ 312.17
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	218497401		Panel-frzr Door, White, With Handles, And Insulation		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
13	218249001		Door Stop, White, Frzr Section				$ 82.06
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	218629301		Panel-refr Door, White, With Handles, And Insulation		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
25	5308000716		Dish-butter				$ 20.48
26	3204522		Container-egg				$ 98.33
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*10240	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
7A	5303291495		Door-dairy		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
