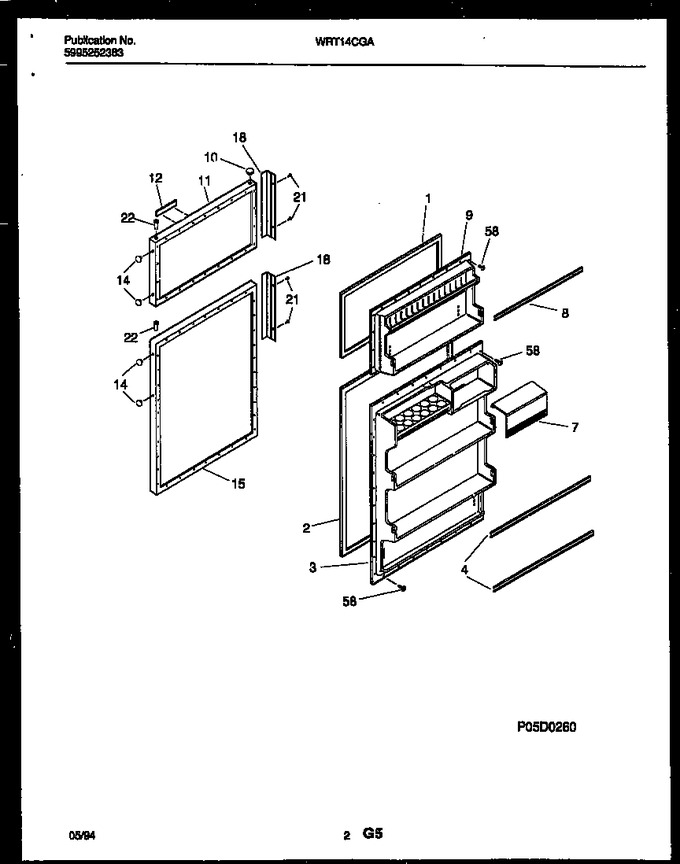

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215776761 | Gasket-frzr Door, Brown, Magnetic |
|
- | |||||
| 2 | 215732461 | Gasket-refr Door, Brown, Magnetic |
|
- | |||||
| 3 | 5318664801 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303282141 | Rack-door |
|
- | |||||
| 7 | 5303300235 | Door-dairy |
|
- | |||||
| 8 | 5303282142 | Rack-door |
|
- | |||||
| 9 | 5318669201 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916346 | Panel-frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 215859000 | Nameplate Assy, Black/silver, W/ Mtg Tape |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916350 | Panel-refr Door, White, W/ Insulation |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *95296 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
