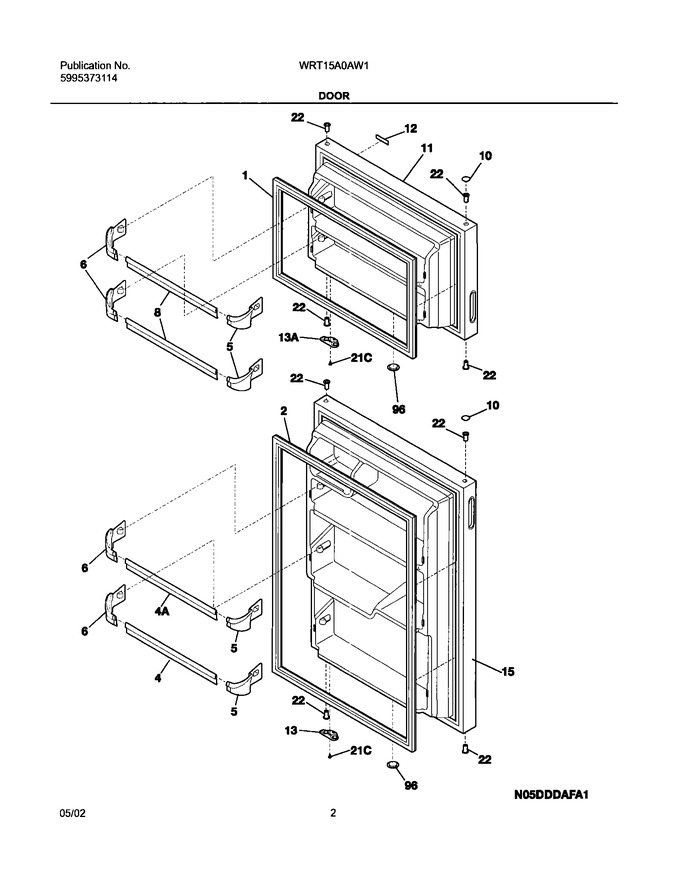

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240331401 | Rack-door,18.65`` (Replaces: 240331404) |
|
Immediately | $ 47.78 | ||||
| 5 | 240311502 | Support-door Rack,2 Liter ,rh |
|
Immediately | $ 11.34 | ||||
| 6 | 240311501 | Support-door Rack,2 Liter ,lh |
|
Immediately | $ 11.34 | ||||
| 8 | 240331401 | Rack-door,16.21`` (Replaces: 240331405) |
|
Immediately | $ 47.78 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240425101 | Panel-frzr Door,white ,complete Assy |
|
$ 337.47 | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240415201) |
|
$ 12.69 | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 15 | 240425201 | Panel-refr Door,white ,complete Assy |
|
$ 295.13 | |||||
| 22 | 5304507146 | Bearing-hinge,natural Color ,(8) (Replaces: 240311201) |
|
Immediately | $ 7.59 | ||||
| 96 | 240345505 | Plug,door Foam Hole ,white |
|
$ 12.90 | |||||
| 13A | 240312414 | Door Stop,white ,frzr (Replaces: 240312404) |
|
$ 19.13 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 4A | 240331407 | Rack-door,9.04`` |
|
$ 64.16 | |||||
| F1 | 241872501 | Gasket,frzr Door Seal ,white ,magnetic (Replaces: 240514601) |
|
Immediately | $ 134.19 | ||||
| F2 | 241872502 | Gasket,refr Door Seal ,white ,magnetic (Replaces: 240514602) |
|
Immediately | $ 162.09 |
