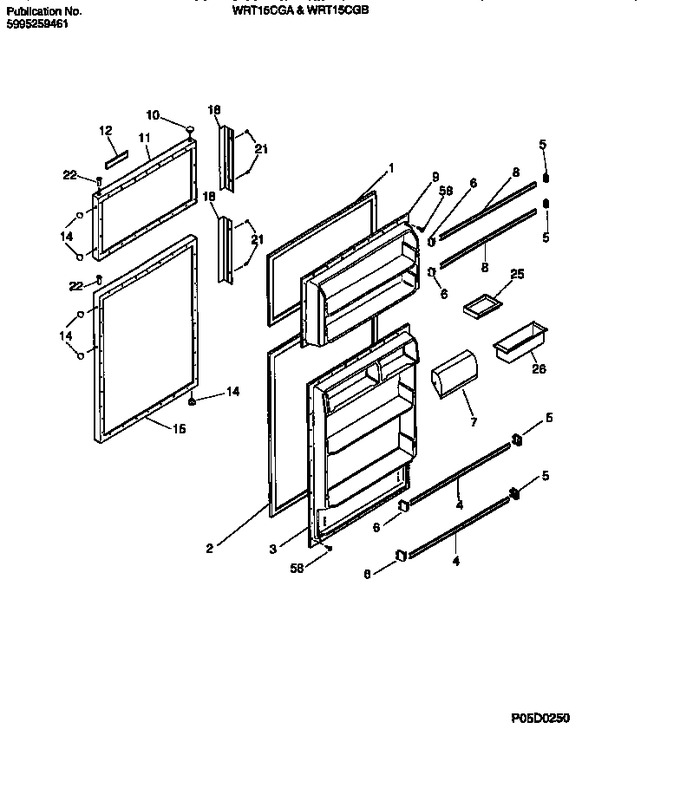

01 - Refrigerator
02 - Door Section
03 - Cabinet W/ Fan Assembly
04 - Shelves, Controls, Divider, Mullion
05 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608961 | Gasket-frzr Door, Brown, Magnetic |
|
- | |||||
| 2 | 215732462 | Gasket - Refr Door, Brown, Magnetic |
|
- | |||||
| 3 | 5303207227 | Panel-inner Door, Refr |
|
$ 329.75 | |||||
| 4 | 5303290742 | Rack - Door |
|
- | |||||
| 5 | 5303207230 | Support - Door Rack, Rh |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support - Door Rack, Lh |
|
$ 17.59 | |||||
| 7 | 5303290741 | Door - Dairy |
|
- | |||||
| 8 | 5303290743 | Rack - Door |
|
- | |||||
| 9 | 5303207236 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hold |
|
- | |||||
| 11 | 5303917131 | Panel - Frzr Door, Almond, W / Insulation |
|
- | |||||
| 12 | 5303281098 | Nameplate Assy, Black/silver, W / Mtg Tape |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916835 | Panel-refr Door, Almond, W / Insulation |
|
- | |||||
| 18 | 215164904 | Handle Door, 8`` Lg, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *17960 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340712 | Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated) |
|
- | |||||
| 12B | 5315340760 | Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated) |
|
- |
