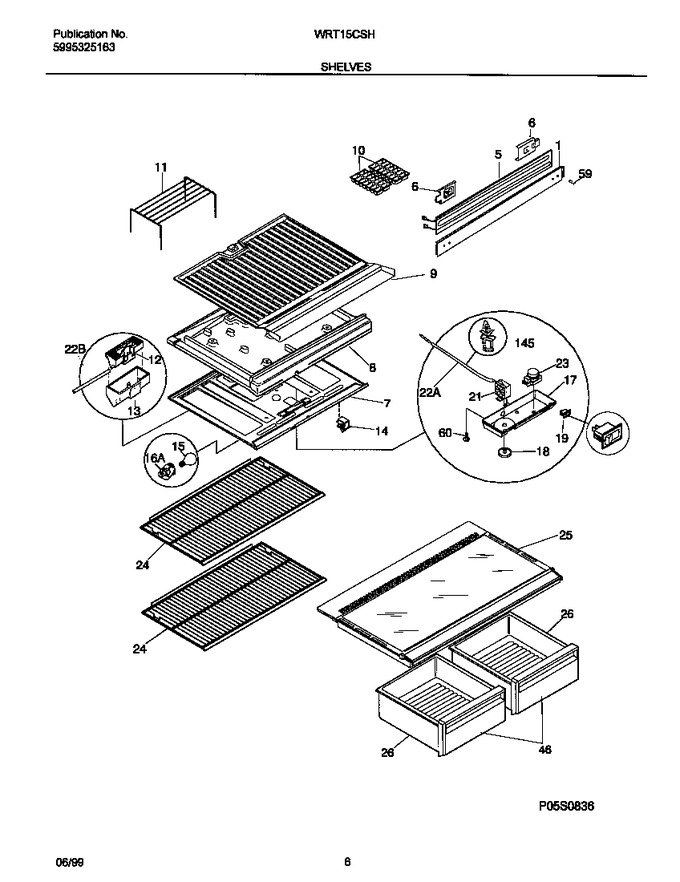

04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651801		Mullion, Almond		Appelez-nous	-
5	218781001		Heater-mullion				$ 50.56
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218865801		Panel-top,refr Cavity		Appelez-nous	-
8	218909701		Divider,styrofoam ,w/foil Tape		Appelez-nous	-
9	218865600		Panel-bottom,frzr Cavity		Appelez-nous	-
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303282284		Shelf-freezer, ``table Type``   (Replaces: 5303283280)			Immediately	$ 88.05
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature			Immediately	$ 164.57
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
23	215846602		Timer-defrost   (Replaces: 215846605)			Immediately	$ 28.20
24	218272502		Shelf, Sliding, Wire				$ 621.92
25	218314101		Cover-crisper Pan, W/support Beam				$ 219.45
26	3206180		Pan - Crisper				$ 155.70
46	5303303588		Front, Crisper Pan				$ 42.44
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*55017	218878500		Harness-wiring,control/divider				$ 105.99
*55018	5303001260		Screw				$ 6.73
*55019	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
