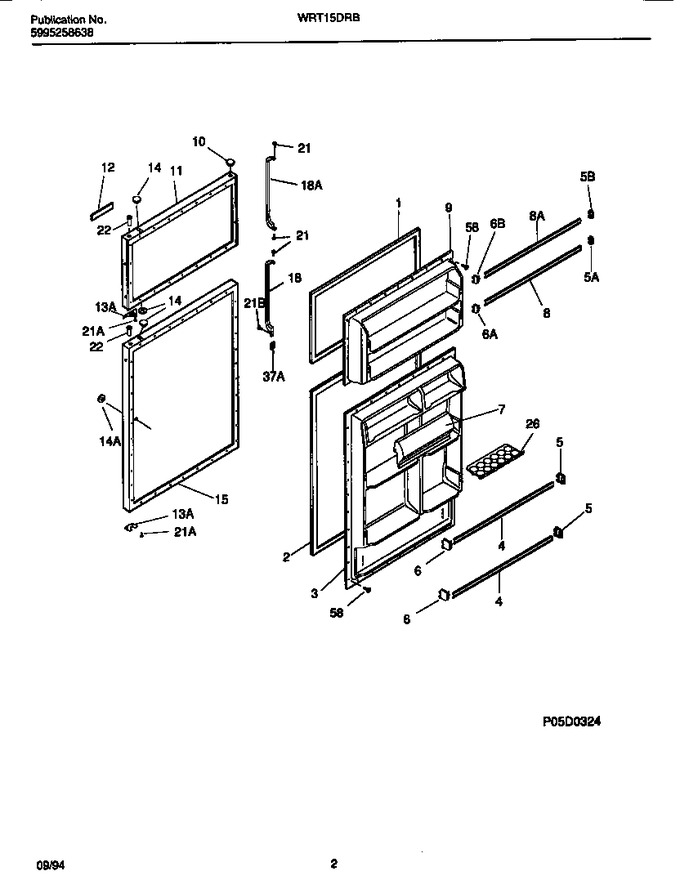

02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	5303281227		Panel-inner Door, Refr		Appelez-nous	-
4	215366045		Rack-door		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303300053		Door-dairy		Appelez-nous	-
8	215366044		Rack-door		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917306		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215490711		Nameplate Assy, Almond		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917378		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215915543		Handle-door, 17.37``, Almond		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*42920	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220310		Label-nameplate, Dk Putty/lt Brn (non-illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12C	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215915541		Handle-door, 17.02``, Almond		Appelez-nous	-
21A	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
22A	5308012007		Bearing-hinge		Appelez-nous	-
37A	215480204		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-
5A	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
5B	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
6A	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
6B	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8A	5303300071		Rack-door		Appelez-nous	-
