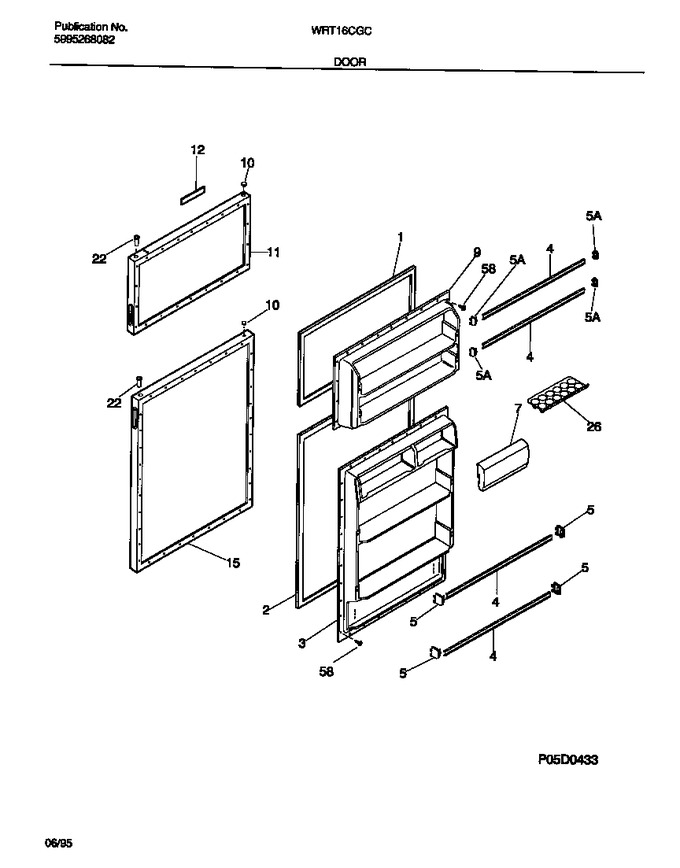

02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007123 | Gasket-frzr Door, White, Magnetic |
|
$ 188.54 | |||||
| 2 | 218730603 | Gasket-refr Door, White, Magnetic (Replaces: 5318680311) |
|
$ 62.07 | |||||
| 3 | 218359001 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366002 | Rack-door,22.20`` X 1.62`` (Replaces: 218027017) |
|
Immediately | $ 65.83 | ||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 218287801 | Door-dairy |
|
$ 41.48 | |||||
| 9 | 218358801 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 218615701 | Panel-frzr Door, White, With Handles, And Insulation |
|
- | |||||
| 12 | 5303281098 | Nameplate Assy, Black/silver, W / Mtg Tape |
|
- | |||||
| 15 | 218615801 | Panel-refr Door, White, With Handles, Insul, & Brace |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *40800 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340712 | Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated) |
|
- | |||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 |
