SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System

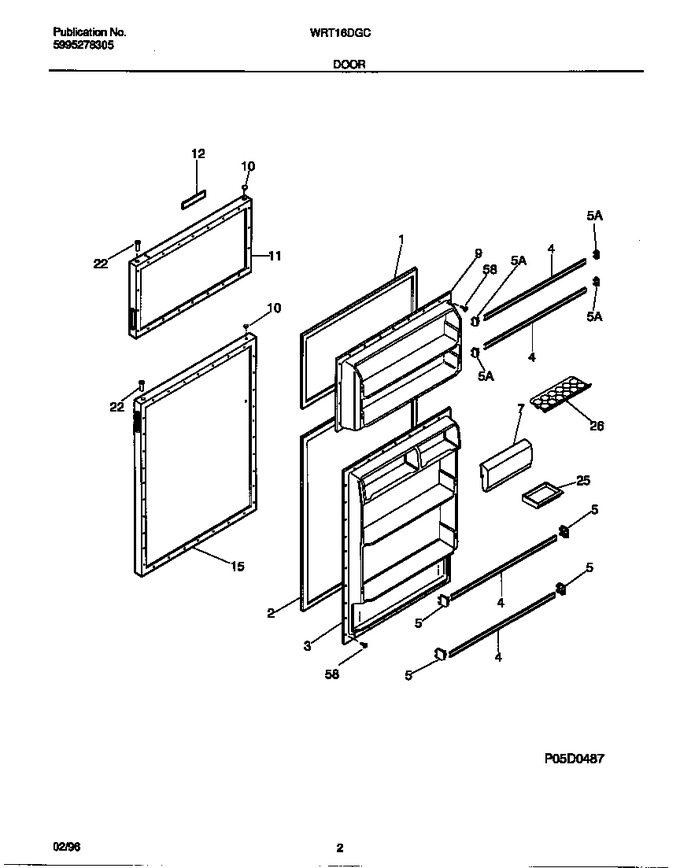

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732402		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	218287801		Door-dairy, 10.71`` Wide				$ 41.48
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	218615700		Panel-frzr Door, Almond, With Handles, And Insulation		Appelez-nous	-
15	218615800		Panel-refr Door, Almond, With Handles, Insul, & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
25	5308000716		Dish-butter				$ 20.48
26	215817806		Tray-egg				$ 13.46
58	5303314236		Screw, Truss/ph Head, 8-18ab X .500		Appelez-nous	-
*24560	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5303281098		Nameplate Assy, Black/silver, W / Mtg Tape		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
