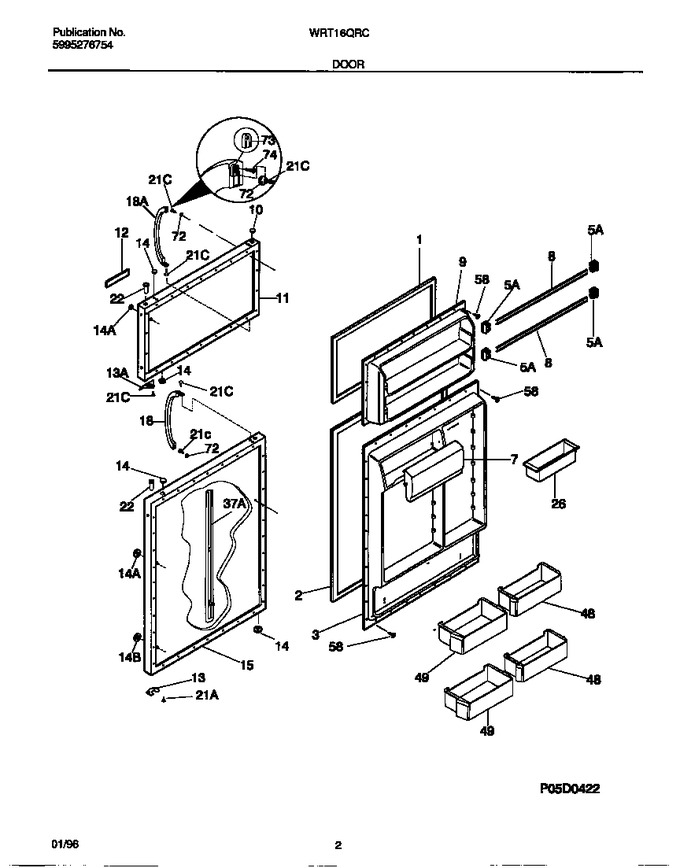

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	218359301		Panel-inner Door, Refr		Appelez-nous	-
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	218287813		Door-dairy, 10.71`` Wide		Appelez-nous	-
8	215366002		Rack-door, 22.20`` X 1.62``   (Replaces: 218027031)			Immediately	$ 65.83
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917603		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
14	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
15	5303917601		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218428102		Handle-door, Almond, W/block & Screw		Appelez-nous	-
18	218428105		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
37	218397702		Trim-handle, 28.33``, Almond, With Mtg Locks		Appelez-nous	-
48	218286005		Bin-door		Appelez-nous	-
49	5303309864		Bin-door, Gallon		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
*45680	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	218409402		Frame-nameplate, Almond		Appelez-nous	-
12B	218409401		Frame-nameplate, White		Appelez-nous	-
12C	215220339		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
12D	215220337		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12E	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
14A	218074001		Plug-button, White, Refr Door Front				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front		Appelez-nous	-
37A	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
