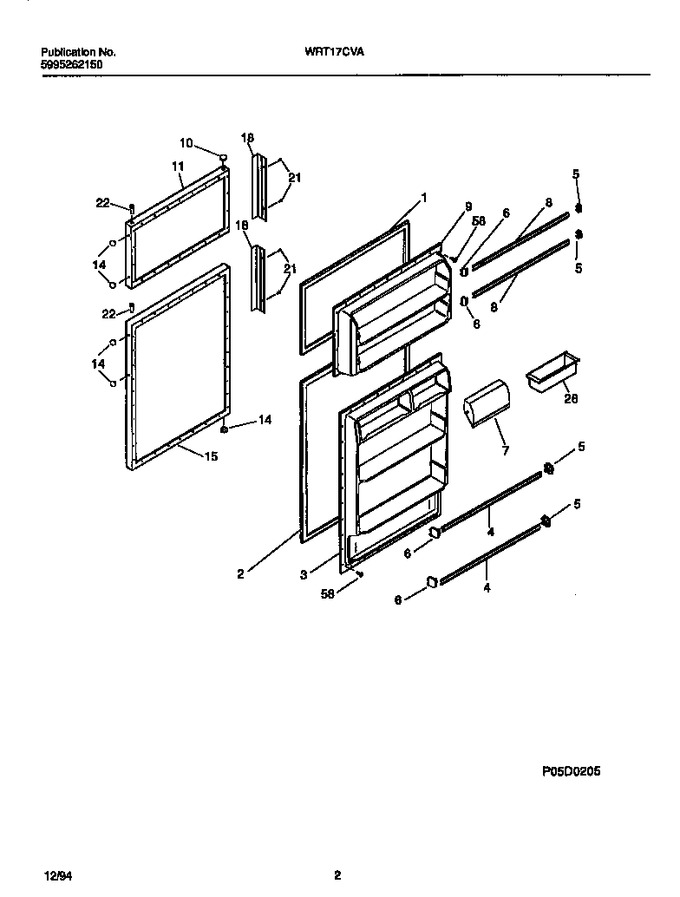

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket, Frzr Door, Brown, Magnetic		Appelez-nous	-
2	530317373		Gasket, Refr Door, Brown, Magnetic		Appelez-nous	-
3	5303207227		Panel-inner Door, Refr				$ 329.75
4	5303290742		Rack - Door		Appelez-nous	-
5	5303207230		Support - Door Rack, Rh			Immediately	$ 17.21
6	5303207229		Support - Door Rack, Lh				$ 17.59
7	5303290741		Door - Dairy		Appelez-nous	-
8	5303290743		Rack - Door		Appelez-nous	-
9	5303207236		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917129		Panel - Frzr Door, White, W / Insulation		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916833		Panel-refr Door, White, W / Insulation		Appelez-nous	-
18	215164904		Handle - Door, 8`` Long, Black Vinyl		Appelez-nous	-
21	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
58A	5308000716		Dish, Butter (ni)				$ 20.48
58B	5303917276		Insulation, Door, Fiberglass, (bulk) (ni)				$ 330.91
