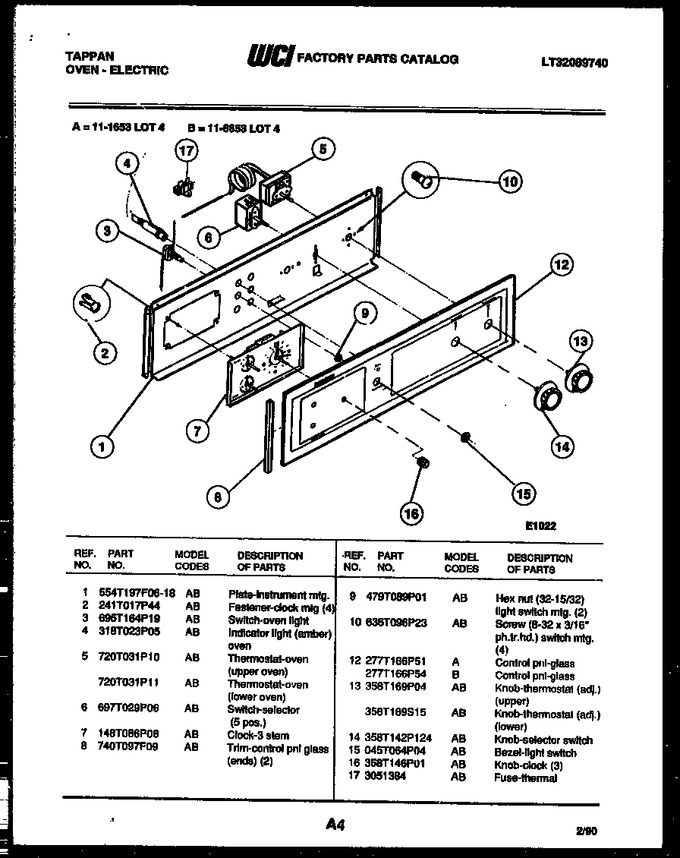

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 554T197F06-18 | Plate-instrument Mtg. |
|
- | |||||
| 2 | 241T017P44 | Fastener-clock Mtg (4) |
|
- | |||||
| 3 | 695T164P19 | Switch-oven Light |
|
- | |||||
| 4 | 318T023P05 | Indicator Light (amber) Oven |
|
- | |||||
| 5 | 720T031P10 | Thermostat-oven (upper Oven) |
|
- | |||||
| 6 | 697T029P06 | Switch-selector (5 Pos.) |
|
- | |||||
| 7 | 148T086P08 | Clock-3 Stem |
|
- | |||||
| 8 | 740T097F09 | Trim-control Pnl Glass (ends) (2) |
|
- | |||||
| 9 | 479T089P01 | Hex Nut (32-15/32) Light Switch Mtg. (2) |
|
- | |||||
| 10 | 636T096P23 | Screw (8-32 X 3/16`` Ph.tr.hd.) Switch Mtg. (4) |
|
- | |||||
| 12 | 277T166P51 | Control Pnl-glass |
|
- | |||||
| 13 | 358T169P04 | Knob-thermostat (adj.) (upper) |
|
- | |||||
| 14 | 358T142P124 | Knob-selector Switch |
|
- | |||||
| 15 | 045T064P04 | Bezel-light Switch |
|
- | |||||
| 16 | 358T146P01 | Knob, Clock (3) |
|
- | |||||
| 17 | 3051384 | Fuse-thermal |
|
- | |||||
| 13A | 358T169S15 | Knob-thermostat (adj.) (lower) |
|
- | |||||
| 5A | 720T031P11 | Thermostat-oven (lower Oven) |
|
- |
